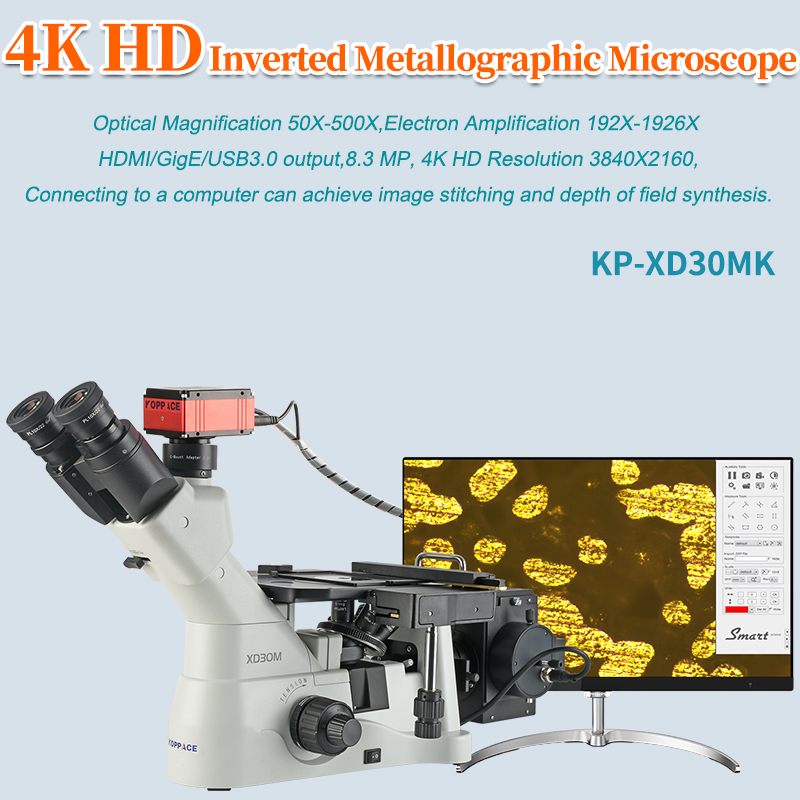

| Model | KP-XD30MK |
| Optical Magnification | 50X,100X,200X,500X |
| Electronic Amplification | 192X-1926X |
| Optical System | Infinity Chromatic Aberration Correction Optical System |
| Eyepiece | High Eye Point large Field of View Flat Field Eyepiece PL10X22mm |
| Objective Lens | Flat Field Infinity Long Working Distance Achromatic Metallographic Objective LMPlan 5X/0.15 WD 10.8mm LMPlan 10X/0.3WD 12.2mm LMPlan 20X/0.45 WD 4mm LMPlan 50X/0.55 WD 7.9mm |

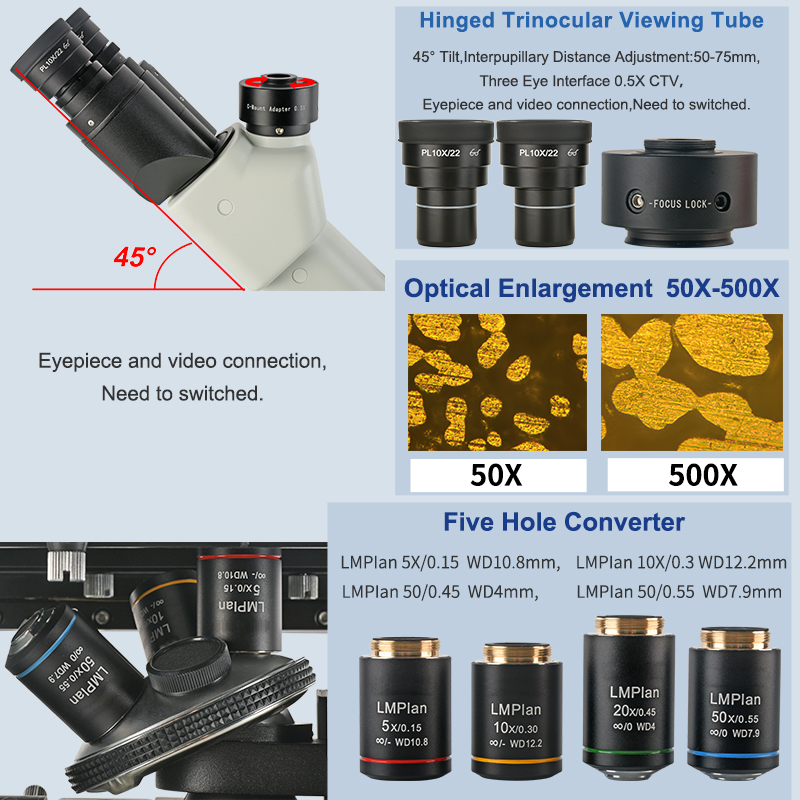

| Observation Tube | 45° Tilt,Hinged Trinocular Viewing Tube,Pupillary Distance Adjustment Range 50-75mm |
| Converter | Five Hole Converter |
| Focusing System | Low Hand Coarse Micro Coaxial Focusing Mechanism,Coarse Adjustment Stroke 38mm,Fine Adjustment Accuracy 0.002mm |

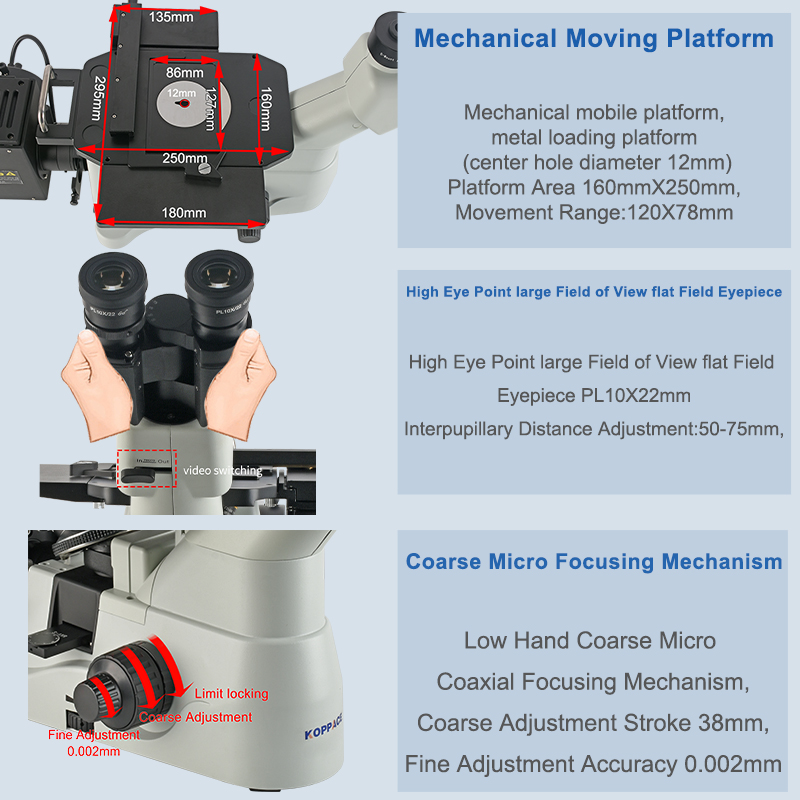

| Operating Platform | Mechanical Mobile Platform, metal loading platform (center hole diameter 12mm) Platform Area 160mmX250mm,Movement Range:120X78mm |
| Lighting System | Reflective Kola Illuminator,12V50W Halogen lamp Center Adjustable,Wide Voltage 100V-240V Self-Adaptive,Brightness Continuously Adjustable |

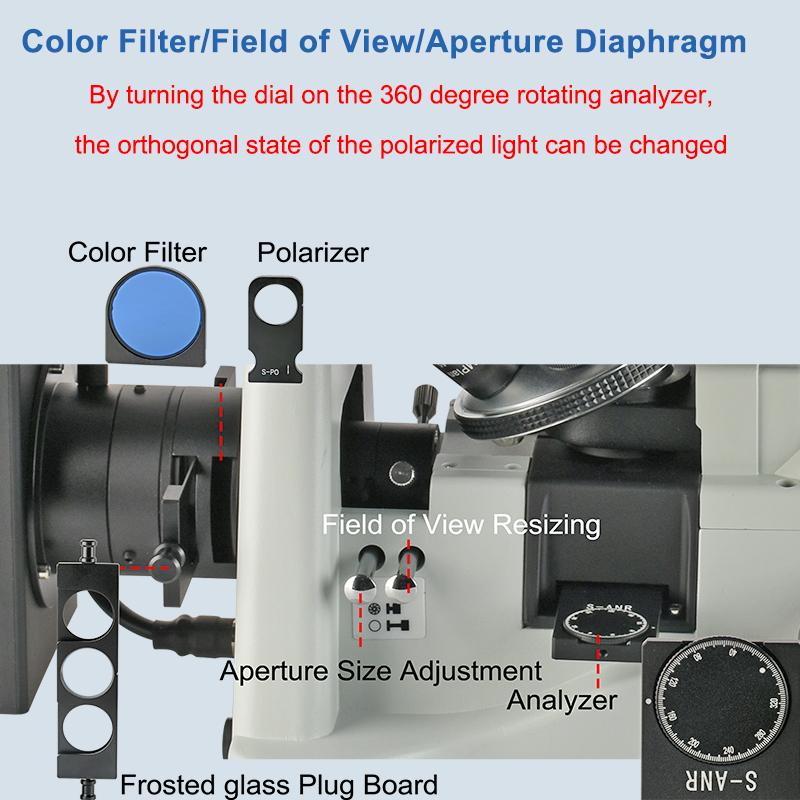

| Polarizing Device | Polarizer Insert Plate,360°Rotating Analyzer Insert Plate |
| Trinocular Interface | 0.5X C-Mount Interface,Adjustable Focus |
| Color Filter | Yellow,Green,Blue,Neutral Filter |
| Pixel | 8.3 Million Pixels |
| Output Method | HDMI、GigE、USB3.0 |
| Sensor | 8.3M/Sony 1/1.8＂CMOS |
| Photographic Resolution | 3840X2160,(Photo can be Manually and Automatically Named file Name) |
| Video Resolution | 4K 30 Frames (3840X2160),1080P 60 Frames (1920X1080) |
| Pixel Size | 2.0μmX2.0μm |
| Frame Rate | 60FPS |
| Color Adjustment | R/G/B |
| White Balance | Auto/Manual |
| Image Adjustment | Exposure Value,Saturation,Brightness,Contrast,Definition,Anti Reflective,Black and White,Flip,Crosshair,Support Horizontal/Vertical Flip,Picture Playback |
| Storage Mode | U Disk Storage,Photo Taking,Video Recording and Measurement |
| GigE/USB3.0 | By connecting to a computer via a network port or a USB3.0 interface, image stitching and depth-of-field synthesis can be achieved. |
| Cross Hair | Support 100 Groups Cross Line,The Color Position is Adjustable |
| Power Supply | AC100V-240V DC-12V |
| Measuring Function | Point Spacing,Point Line Spacing,Line Spacing,Center Distance arc,circle, Angle,Rectangle,Polygon Measurement,Calibration Function,Automatic Edge Searching |

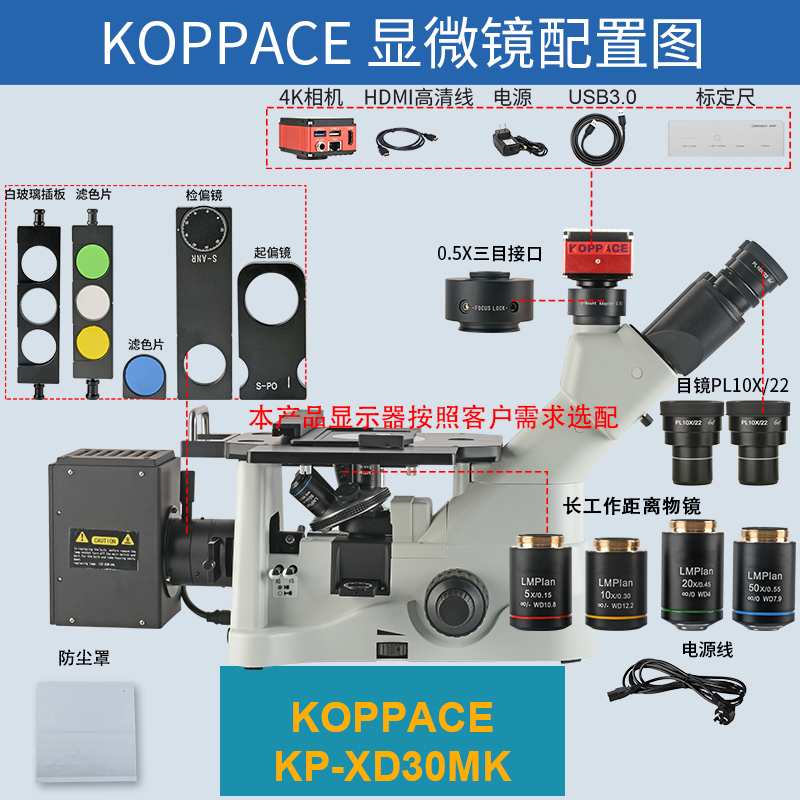

| Packing List | 1、Eyepiece PL10X/22 One Pair 2、Objective Lens 5X *1 3、Objective Lens 10X *1 4、Objective Lens 20X *1 5、Objective Lens 50X *1 6、Trinocular Body *1 7、0.5X Interface *1 8、Yellow/Green/Neutral Color Filter *1 9、Blue Color Filter *1 10、Analyzer *1 11、Polarizer *1 12、Frosted glass Plug Board *1 13、Power Cord *1 14、Dust Cover *1 15. 4K Camera *1 16. HDMI Line *1 17. Camera Power Supply *1 18. Calibrating Ruler *1 19. USB 3.0 Line *1 |
| Note: | 1. This product is HDMI/LAN LAN/USB3.0 output, Connect directly to the monitor through an HDMI cable, or connect to a computer through a network cable/USB 3.0 interface for use. 2. This product has two USB ports, one for connecting to a mouse and the other USB 3.0 for connecting to a computer. (You can also set up an interface to connect to a USB drive and an interface to connect to a mouse). 3. Photography,video recording,and measurement can be achieved on both the monitor and computer. 4. Connecting to a computer can achieve image stitching and depth of field synthesis. 5. This Product Does not Contain a Display; |
**************************************************************************************************************************************************************************************
