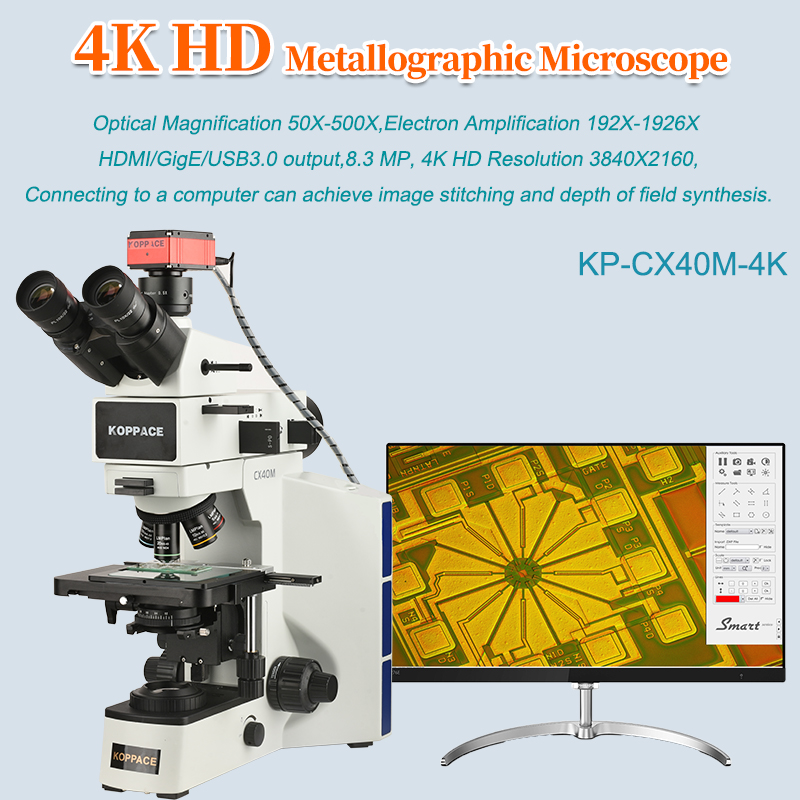

| Model | KP-CX40M-4K |
| Electronic Amplification | 192X-1926X |
| Optical Magnification | 50X、100X、200X、500X |
| Optical System | Infinity Chromatic Aberration Correction Optical System |
| Eyepiece | High Eye Point Large Field of View Flat Field Eyepiece PL10X22mm |
| Objective Lens | Infinity Long Working Distance Flat Field Achromatic Metallographic Objective PL5X/0.15 WD10.8mm PL10X/0.3 WD12.2mm PL20X/0.45 WD4mm PL50X/0.55 WD7.9mm |

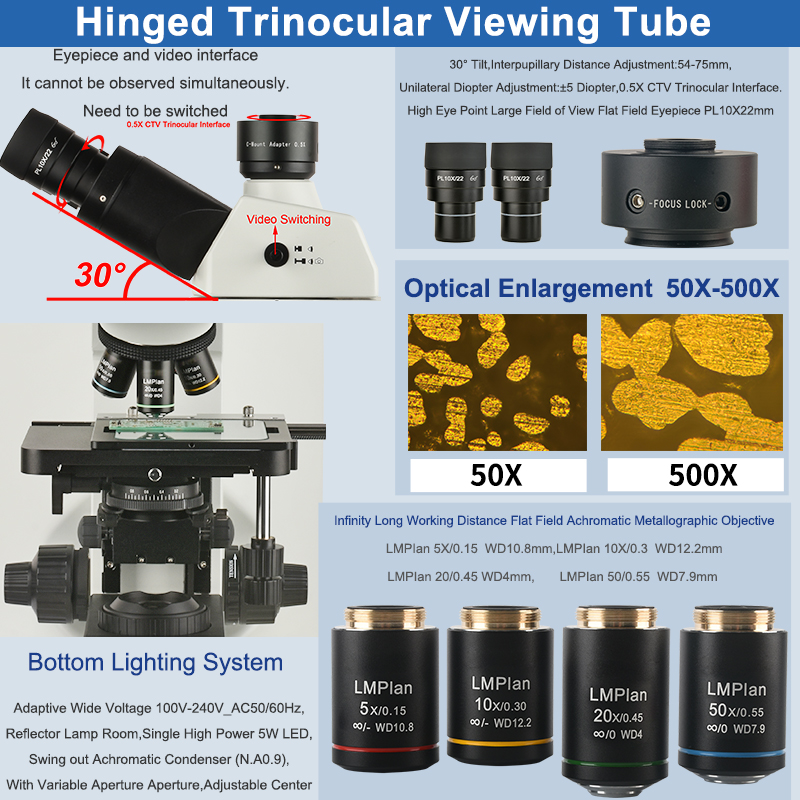

| Observation Tube | 30° Tilt,Inverted Image,Hinged Trinocular Viewing Tube,Pupillary Distance Adjustment Range 54-75mm |
| Objective Lens Converter | Internal Positioning Five-Hole Converter |

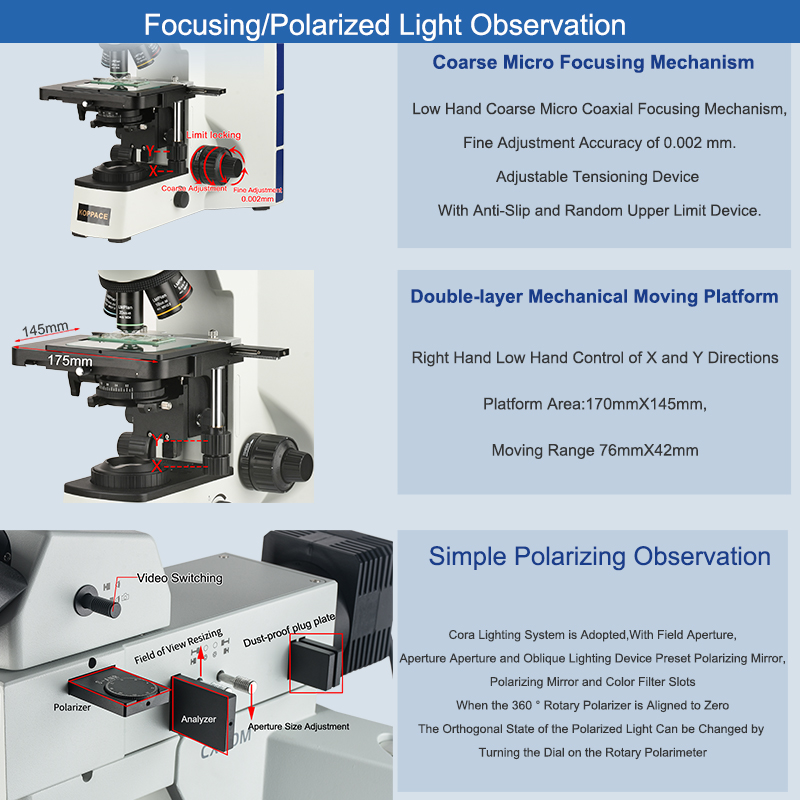

| Focusing System | low-Handed Coarse and Micro-Coaxial Focusing Mechanism,Coarse Adjustment Stroke 28mm,Fine Adjustment Accuracy 0.002mm.Adjustable Tensioning Device With Anti-Slip and Random upper limit Device.Up and Down Adjustment Mechanism With Platform Position,Maximum Sample Height 28mm |
| Operating Platform | Double-layer Mechanical Moving Platform,Coaxial Adjustment of X and Y Directions in low hand Position;Platform Size 175mmX145mm,Moving Range:76mmX42mm |
| Upper Lighting System | Built In 100-240V Wide Voltage System,5WLED,Warm Color,Upper Lighting System,Cora illumination,Field of View Resizing,Aperture Size Adjustment,Adjustable Center |
| Lower Lighting System | Built In 100-240V Wide Voltage System,5WLED,Warm Color,Brightness Control. |
| Condenser | Abbe condenser,Numerical Aperture N.A0.9,With Variable aperture Adjustment,Center Adjustable |
| Polarized Light Device | Polarizer and Analyzer |
| Trinocular Interface | Three Eye Interface 0.5X CTV |

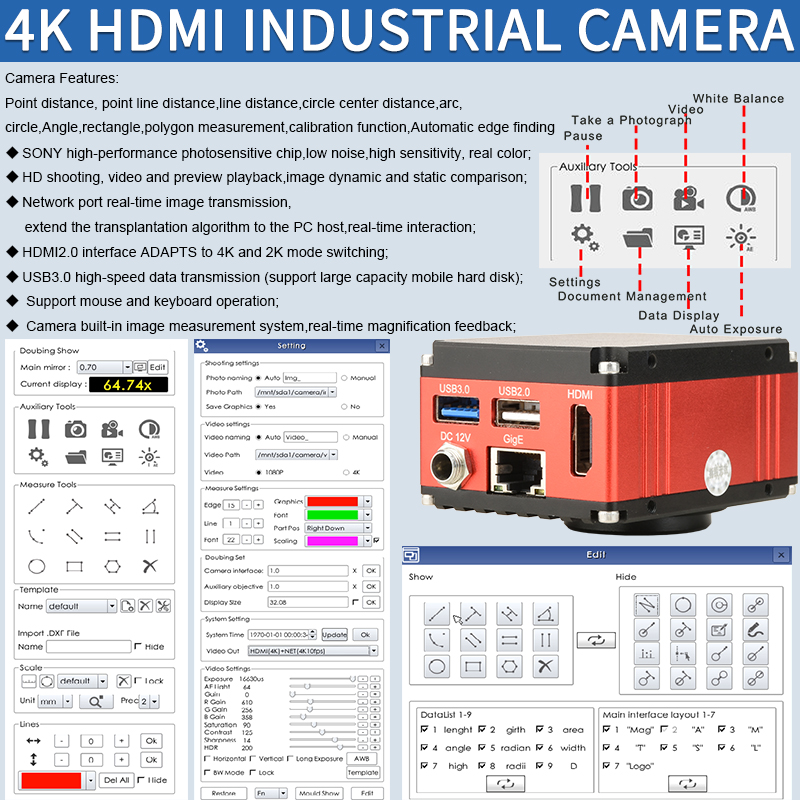

| Pixel | 8.3 Million Pixels |
| Output Method | HDMI、GigE、USB3.0 |
| Sensor | 8.3M/Sony |
| Sensor Size | 1/1.8＂CMOS |
| Resolution Frame Rate | 3840X2160,(Photo can be Manually and Automatically Named file Name) |
| Video Resolution | 4K 30 Frames (3840X2160),1080P 60 Frames (1920X1080) |
| Pixel Size | 2.0μmx2.0μm |
| Color Adjustment | R/G/B |
| Exposure | Auto/Manual |
| White Balance | Auto/Manual |
| Image Adjustment | Exposure Value,Saturation,Brightness,Contrast,Definition,Anti Reflective,Black and White,Flip,Crosshair,Support Horizontal/Vertical Flip,Picture Playback |
| Storage Mode | U Disk Storage,Photo Taking,Video Recording and Measurement |

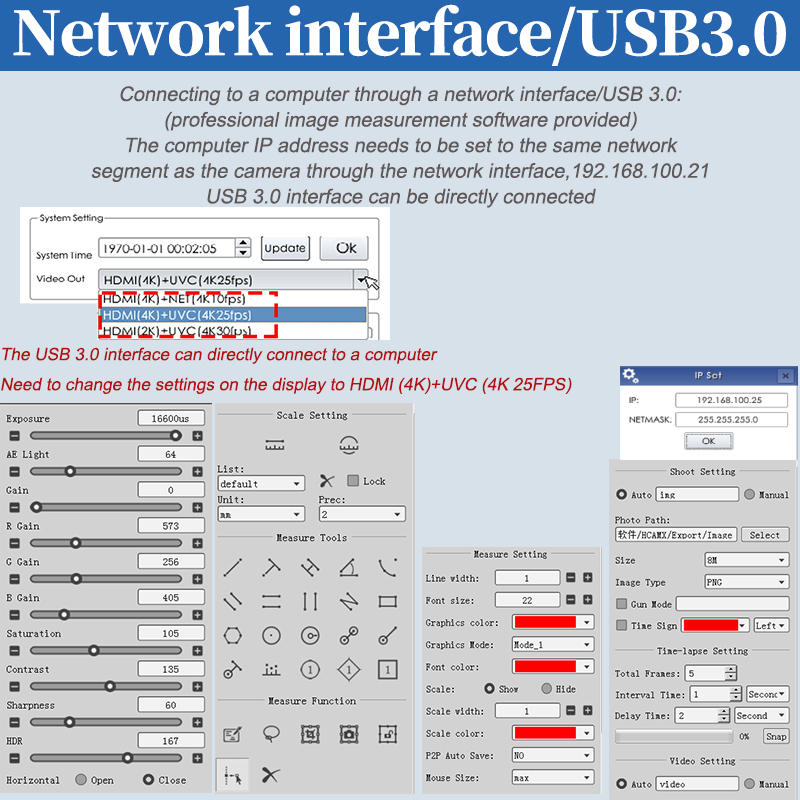

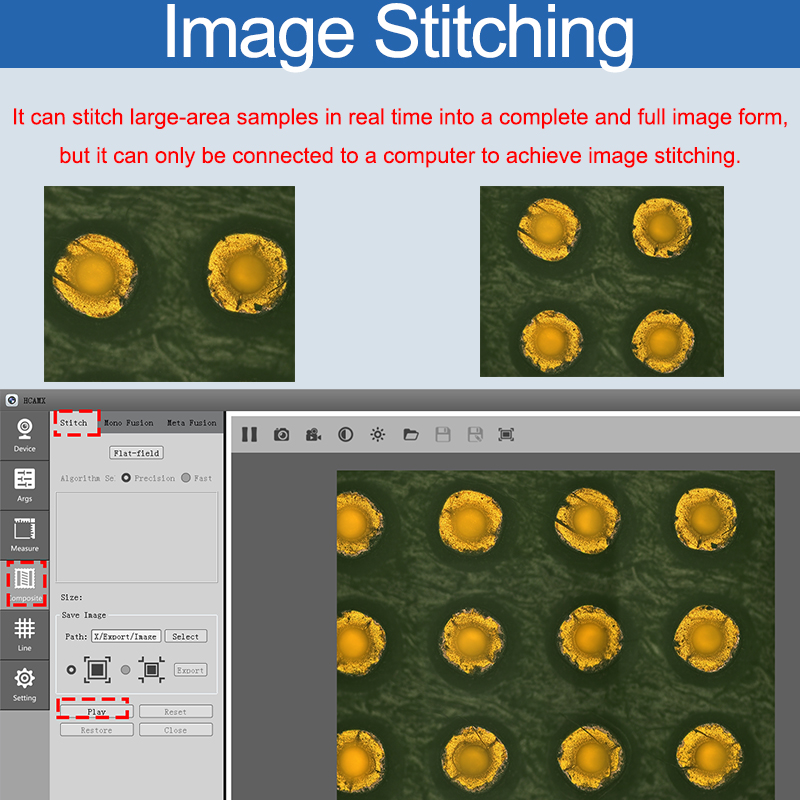

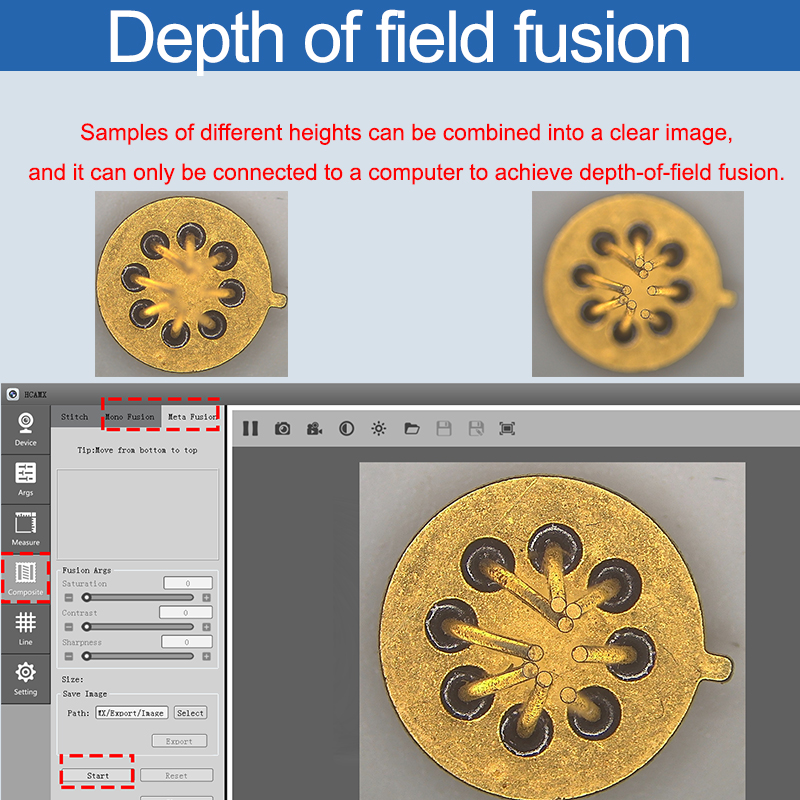

| GigE/USB3.0 | By connecting to a computer via a network port or a USB3.0 interface, image stitching and depth-of-field synthesis can be achieved. |
| Power Supply | AC100V-240V DC-12V |

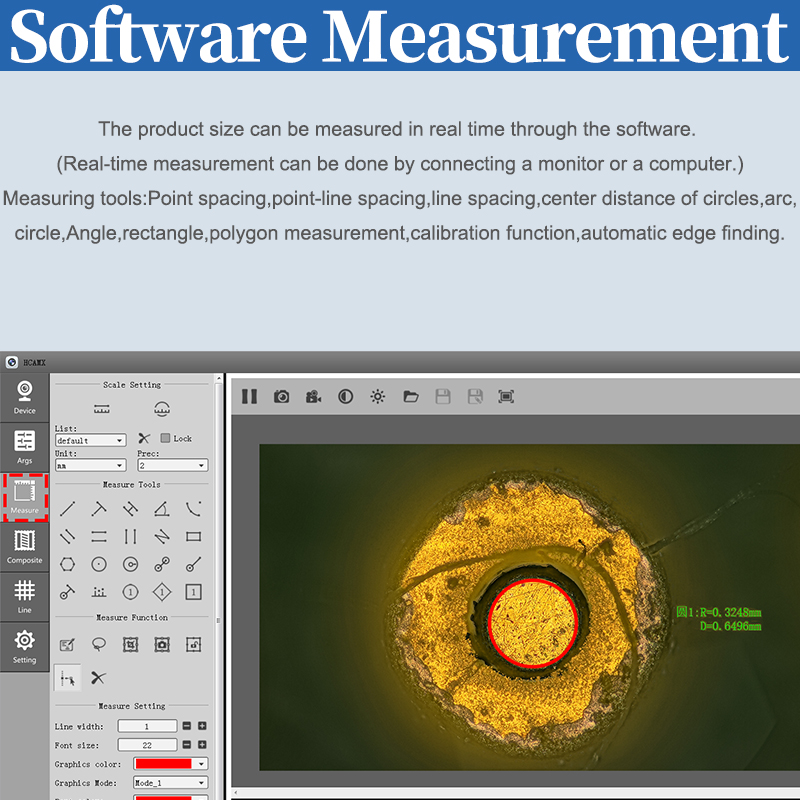

| Measuring Function | Point Spacing,Point Line Spacing,Line Spacing,Center Distance arc,circle, Angle,Rectangle,Polygon Measurement,Calibration Function,Automatic Edge Searching |

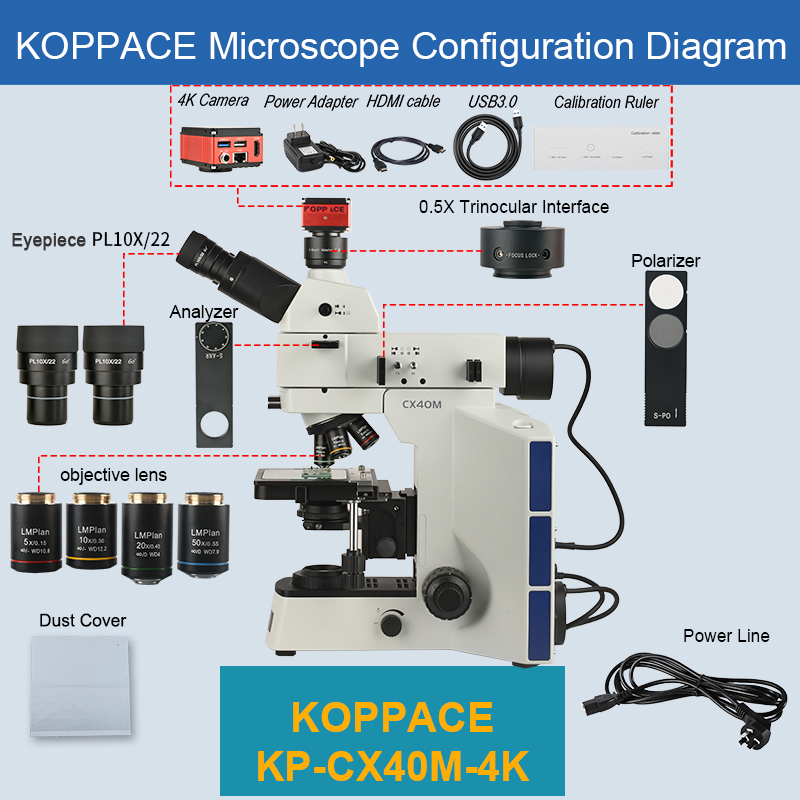

| Packing List | 1. Eyepiece PL10X/22mm One Pair 2. Objective Lens LMPlan 5X * 1 3. Objective Lens LMPlan 10X * 1 4. Objective Lens LMPlan20X * 1 5. Objective Lens LMPlan50X * 1 6. Microscope Body * 1 7. Trinocular Lens * 1 8. Power Cord * 1 9. Polarizer *1 10. Analyzer *1 11. 0.5X Interface *1 12.Dust Cover *1 13. 4K Camera *1 14. HDMI Line *1 15. Camera Power Supply *1 16. Calibrating Ruler *1 17. USB 3.0 Line *1 |

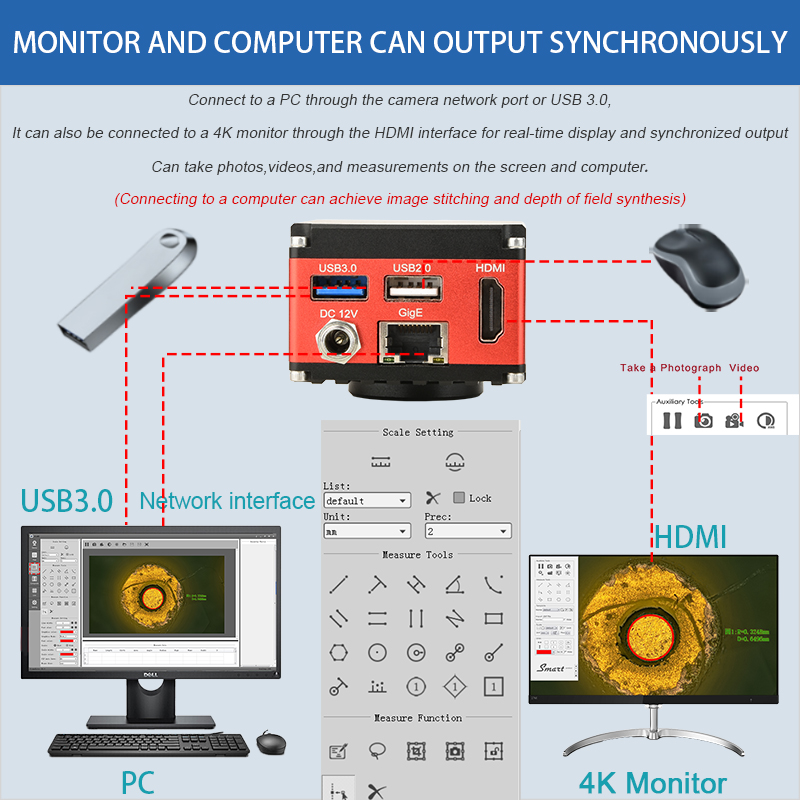

| Note | 1. This product is HDMI/LAN LAN/USB3.0 output, Connect directly to the monitor through an HDMI cable, or connect to a computer through a network cable/USB 3.0 interface for use. 2. This product has two USB ports, one for connecting to a mouse and the other USB 3.0 for connecting to a computer. (You can also set up an interface to connect to a USB drive and an interface to connect to a mouse). 3. We can connect to a PC through a LAN or USB3.0 interface and provide professional imaging software. 4. Connecting to a computer can achieve image stitching and depth of field synthesis. 5. This Product Does not Contain a Display; 6. This product include polarizer and analyzer |
****************************************************************************************************************************************************************************************************************************************************
