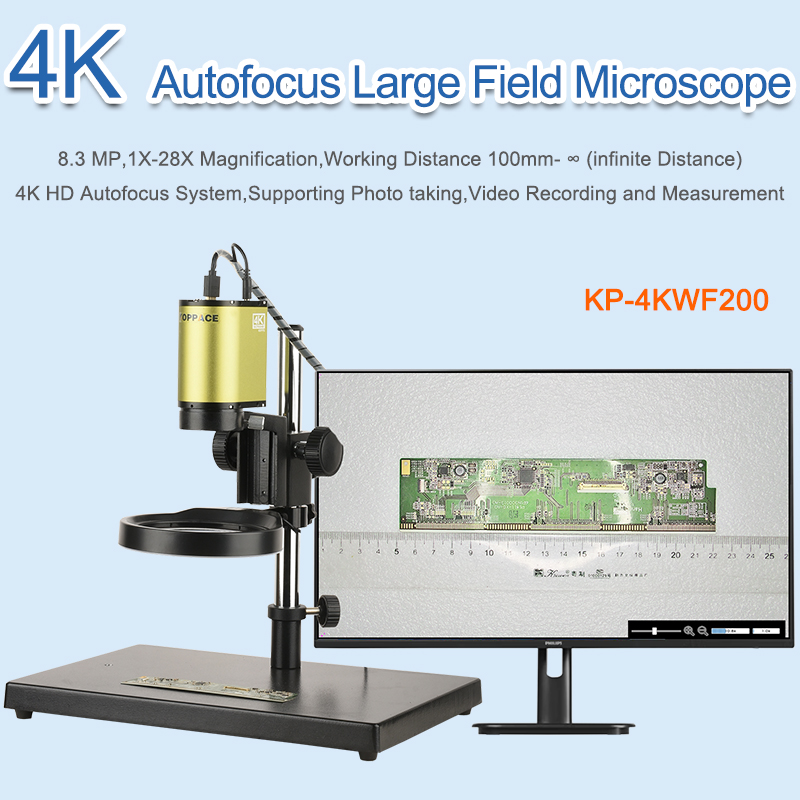

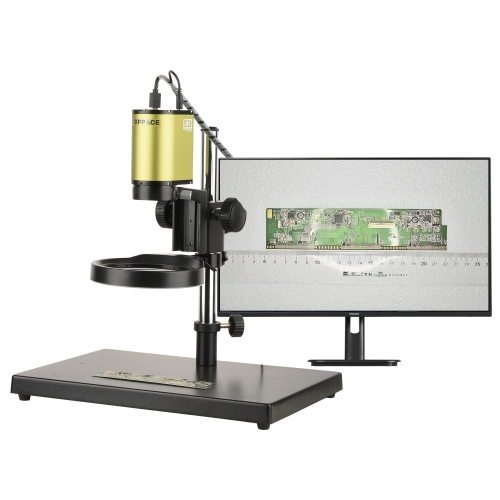

| Model | KP-4KCV-WF | |
| Optical Magnification | 1X-28X | |
| Working Distance | 10cm～∞ | |

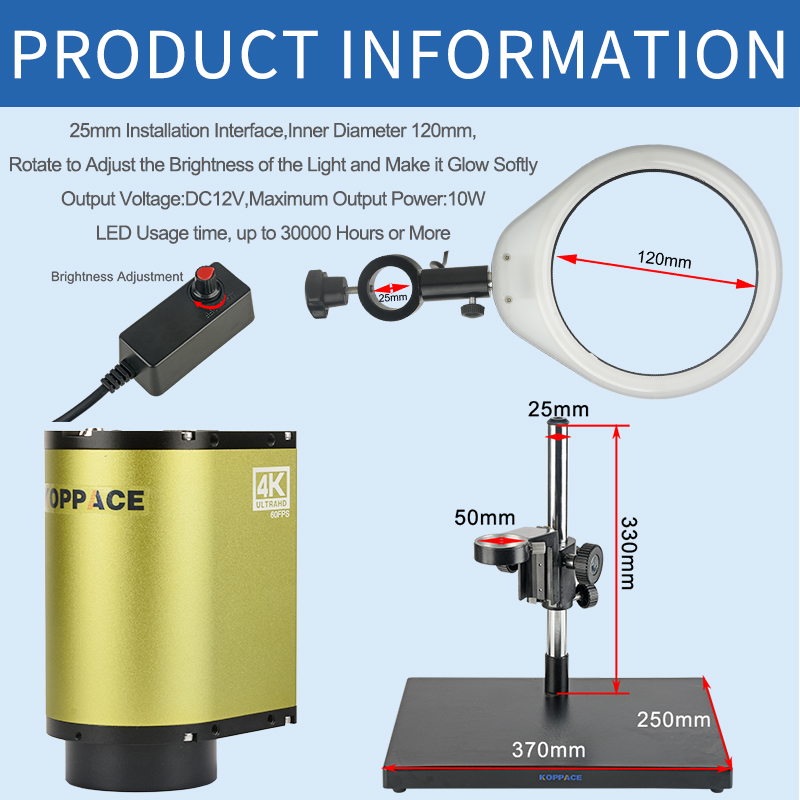

| Column Height | 330mm | |
| Bottom Size | 370X250X16mm | |
| LED Light Source | 48 lamp Beads, inner Diameter 120mm,Input Voltage AC100-240V, Maximum Output Power 10W,Voltage 12V | |

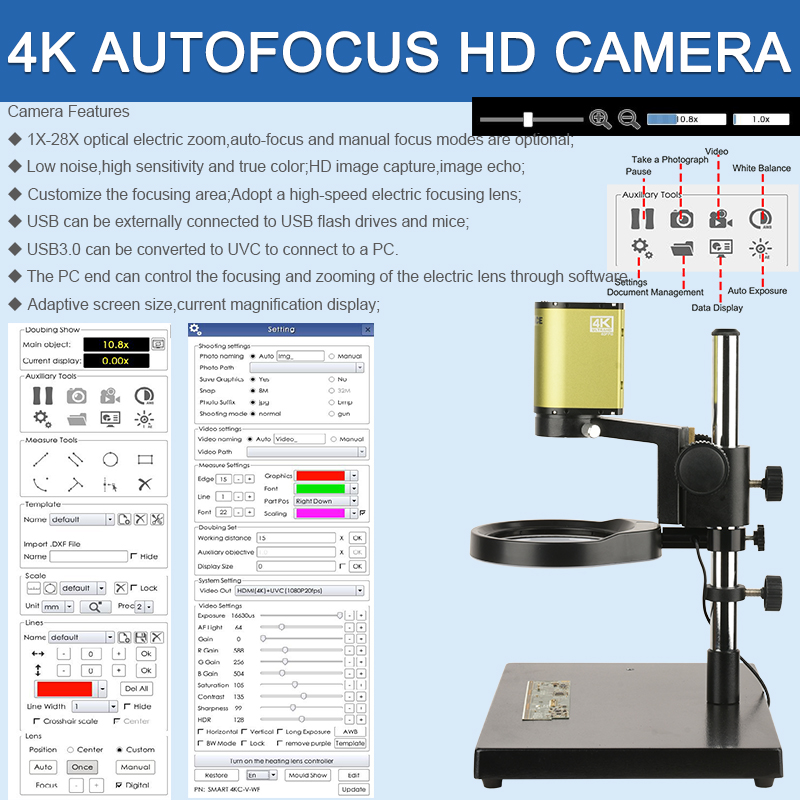

| Pixels | 8.3 Million Pixels Autofocus Microscope Camera (Built-in wide-angle lens) | |

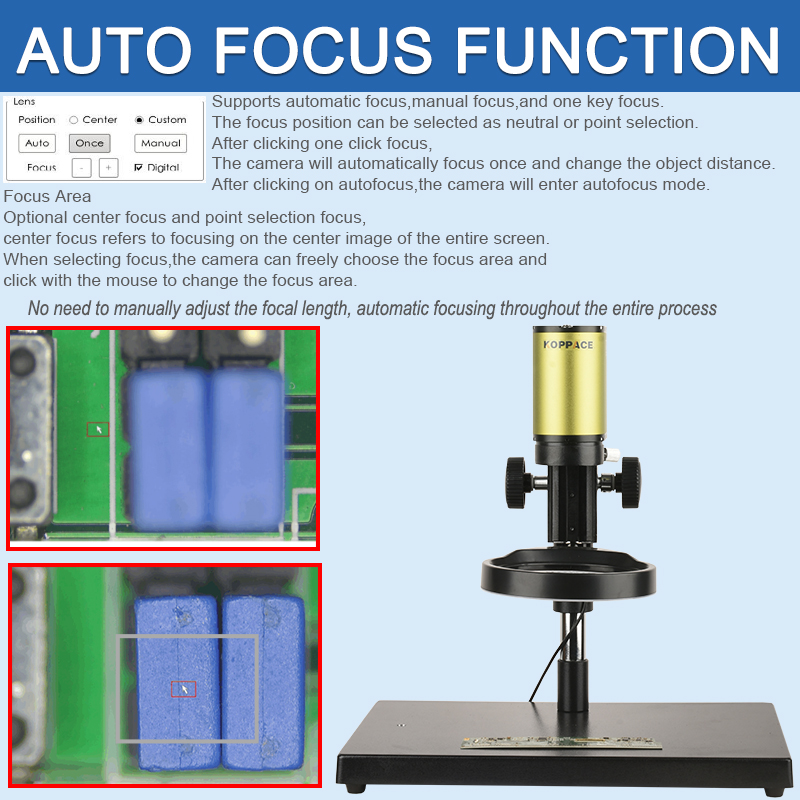

| Focus Mode | Auto Focus,Manual focus,One key focus | |
| Output Method | HDMI/USB | |
| Pixel Size | 1/2.8“ | |
| HDMI Resolution Ratio | 3840 X 2160 60FPS | |
| Photo Resolution Ratio | 3840X2160,(Photo can be Manually and Automatically Named file Name) | |
| HDMI Video Recording | 1080P 30 FPS (1920 X 1080) MP4 Format | |
| White Balance | Auto/Manual | |
| Image Adjustment | Exposure Value,Saturation,Brightness,Contrast,Definition,Anti Reflective,Black and White,Flip,Crosshair,Support Horizontal/Vertical Flip,Picture Playback,Supports Image Freezing | |
| Storage Mode | U Disk Storage,Photo Taking,Video Recording and Measurement | |
| Cross Hair | Support 100 Groups Cross Line,The Color Position is Adjustable | |
| Color Adjustment | R、G、B | |

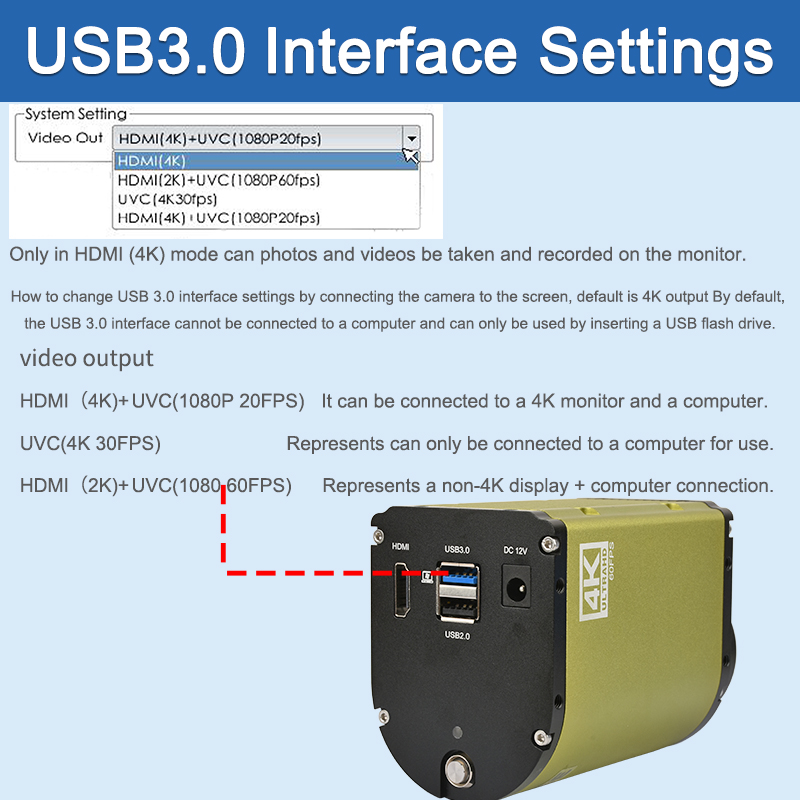

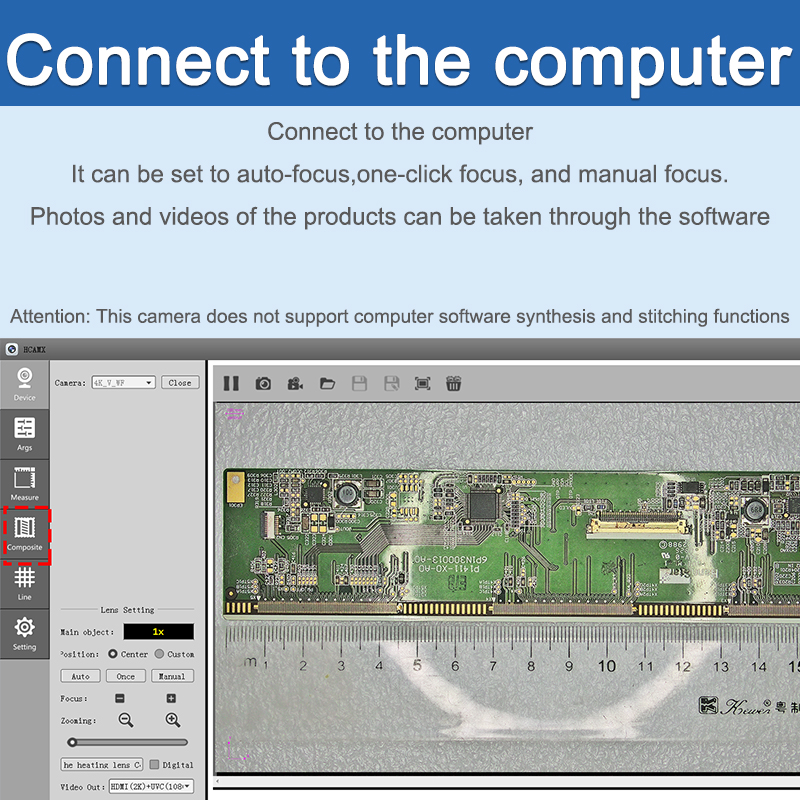

| USB3.0 | By Connecting to a Computer via the USB3.0 Interface,the image software can Achieve Manual/Automatic Focusing | |
| Input Voltage | AC100V—240V 12V | |

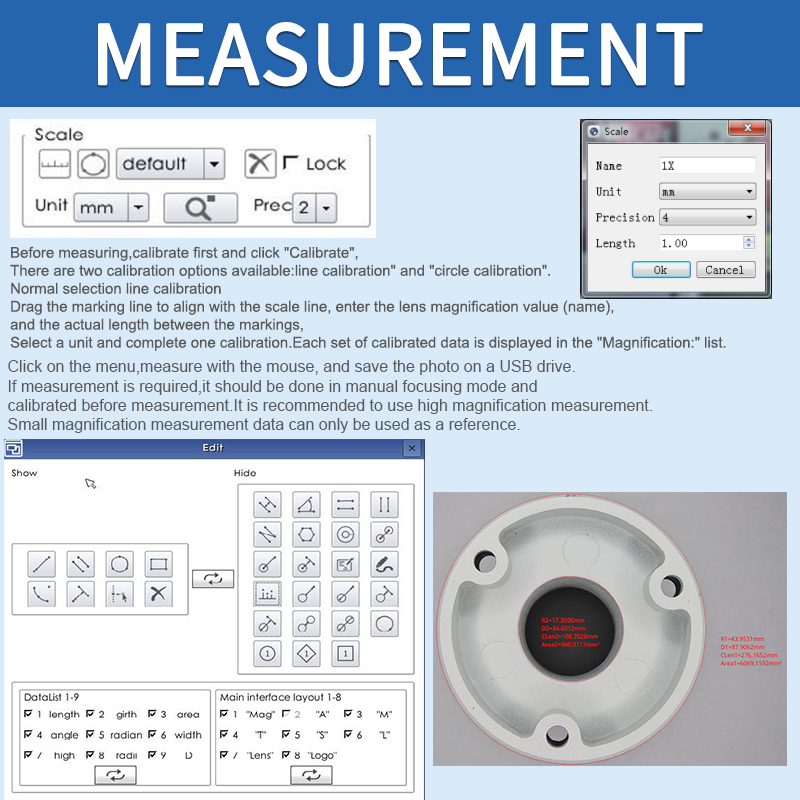

| Measuring Function | Point Spacing,Point line Spacing,Line Spacing,Circle Center Distance,Arc, Circle,Angle Rectangle and Polygon Measurement,Calibration Function,Automatic Edge Searching. | |
| Language | Chinese,English,Traditional Chinese | |

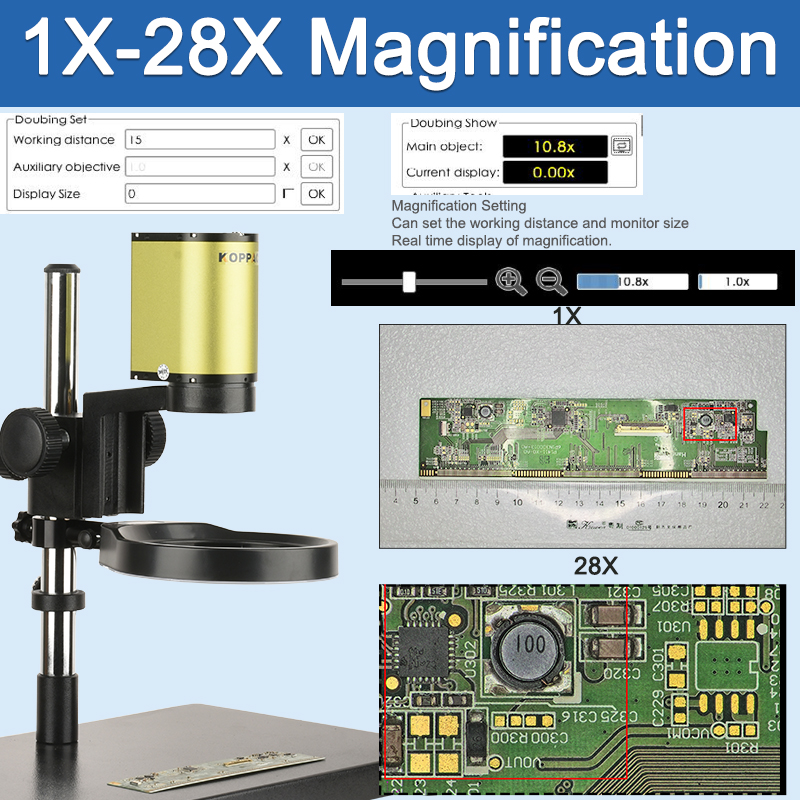

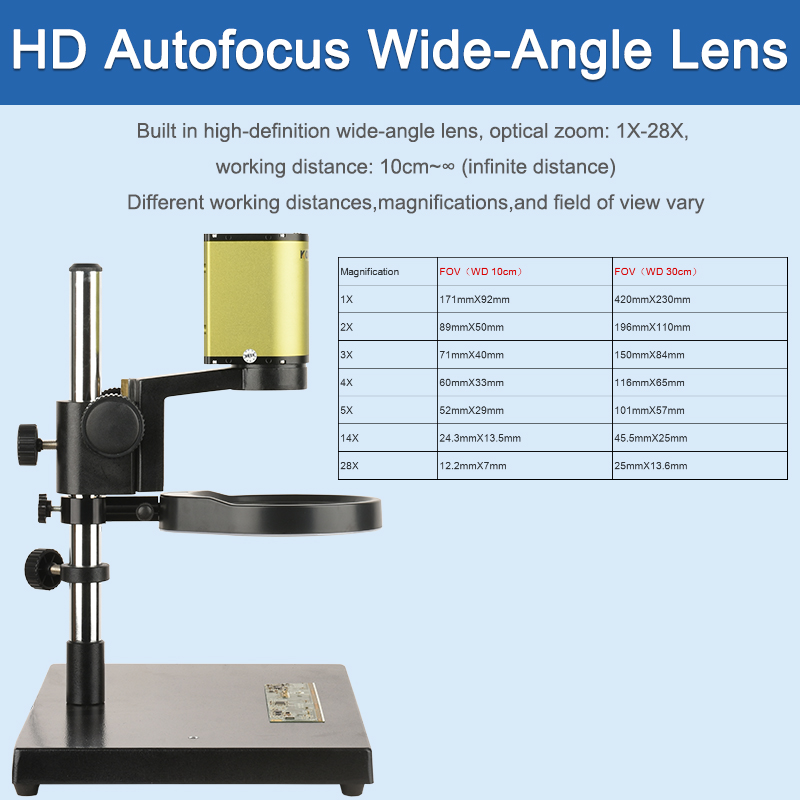

| Magnification | FOV(10cm Working Distance) | FOV(30cm Working Distance) |
| 1X | 171mmX92mm | 420mmX230mm |
| 2X | 89mmX50mm | 196mmX110mm |
| 3X | 71mmX40mm | 150mmX84mm |
| 4X | 60mmX33mm | 116mmX65mm |
| 5X | 52mmX29mm | 101mmX57mm |
| 14X | 24.3mmX13.5mm | 45.5mmX25mm |
| 28X | 12.2mmX7mm | 25mmX13.6mm |

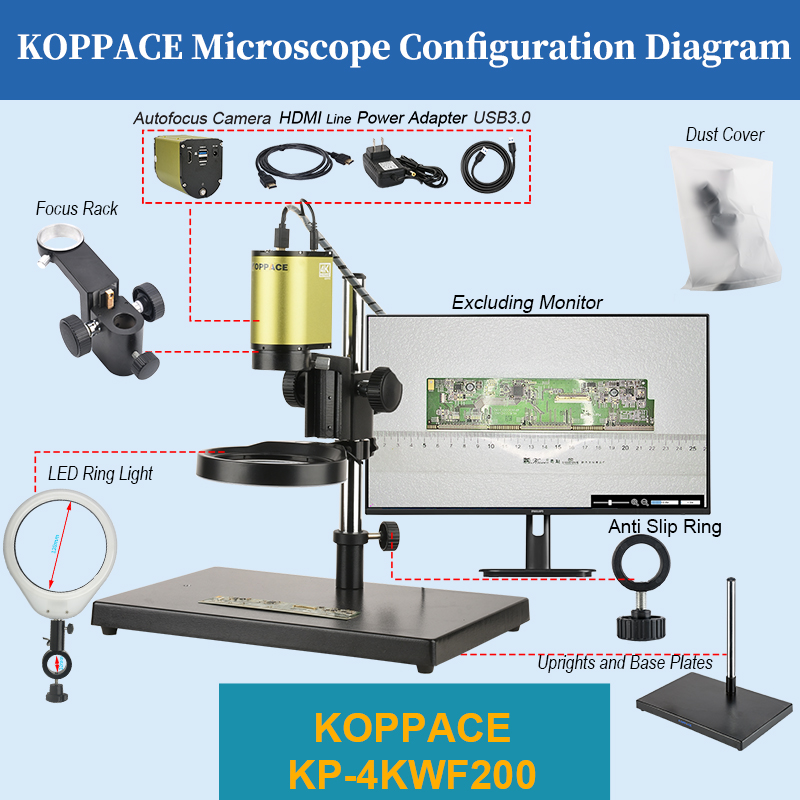

| Packing List | 1、Focusing Rack *1 2、Column *1 3、Bottom Plate *1 4、LED Ring Light *1 5、Dust Cover *1 6、Anti Slip Ring *1 7、4K Camera *1 8、HDMI Line *1 9、USB 3.0 Line *1 10、The Camera Power Adapter *1 |
|
| Note | 1. This product features HDMI/USB output and can be directly connected to the monitor via an HDMI cable.Alternatively,it can be connected to a computer via a USB3.0 interface. 2.This product is equipped with two USB ports, one for connecting a mouse and the other via USB3.0 for connecting a computer.You can also set up one interface to connect to a USB flash drive and another to connect to a mouse. 3. If measurement is required, it should be done in manual focusing mode.Calibration is necessary before measurement. It is recommended to use a high magnification for measurement. 4. Image stitching and depth-of-field synthesis cannot be used when connected to a computer. 5 This Product Does Not Contain a Monitor. |
|
**********************************************************************************************************************************************************************************************************************
