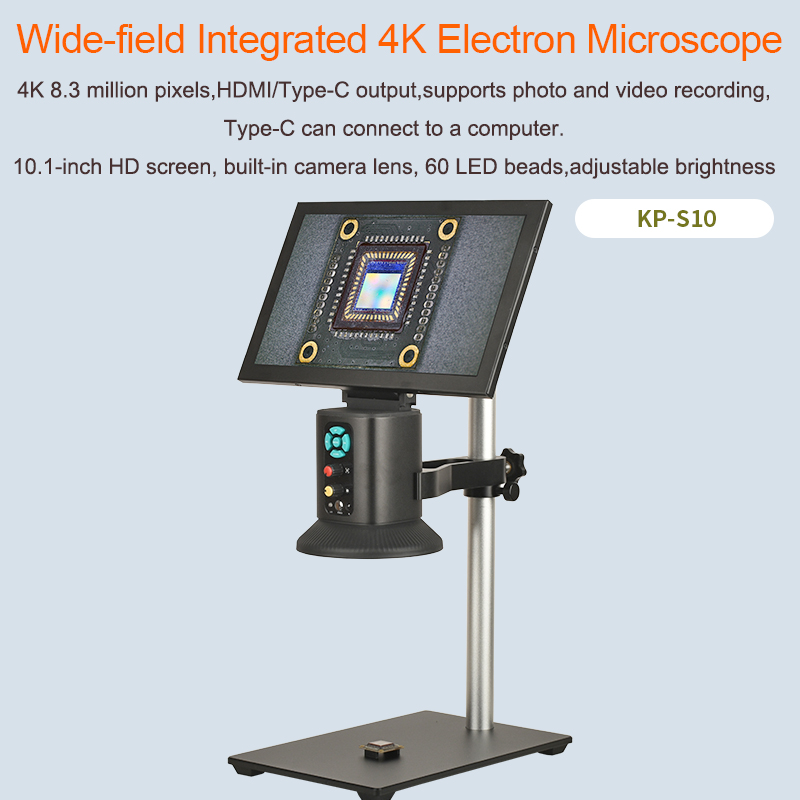

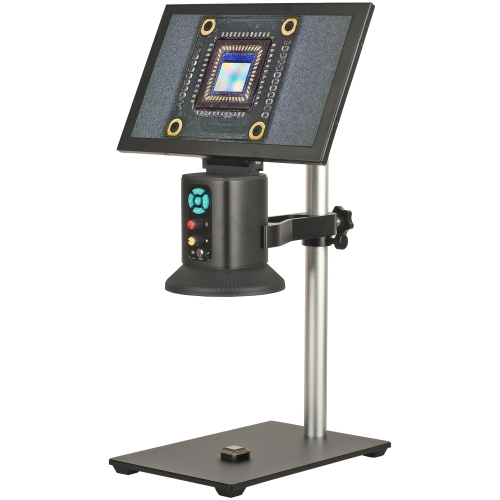

| Model | KP-S10 | ||||
| Monitor | 10.1-inch Monitor | ||||
| Electronic Amplification | 1X-5X | ||||
| Working Distance | 10cm～∞ | ||||

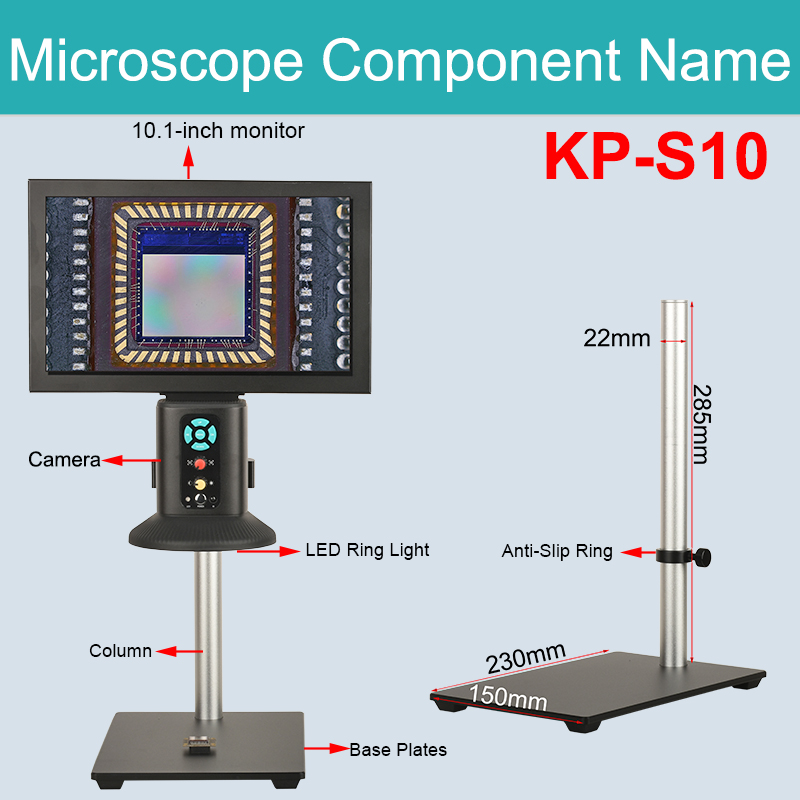

| Bracket Size | Base 230X150mm,column height 285mm,diameter 22mm | ||||
| Sensor | 8.3 Million Pixels （Built in HD lens） | ||||
| Output Method | HDMI、Type-C | ||||
| Sensor Size | 1/2.8 | ||||
| Pixel Size | 1.45μm X 1.45μm | ||||

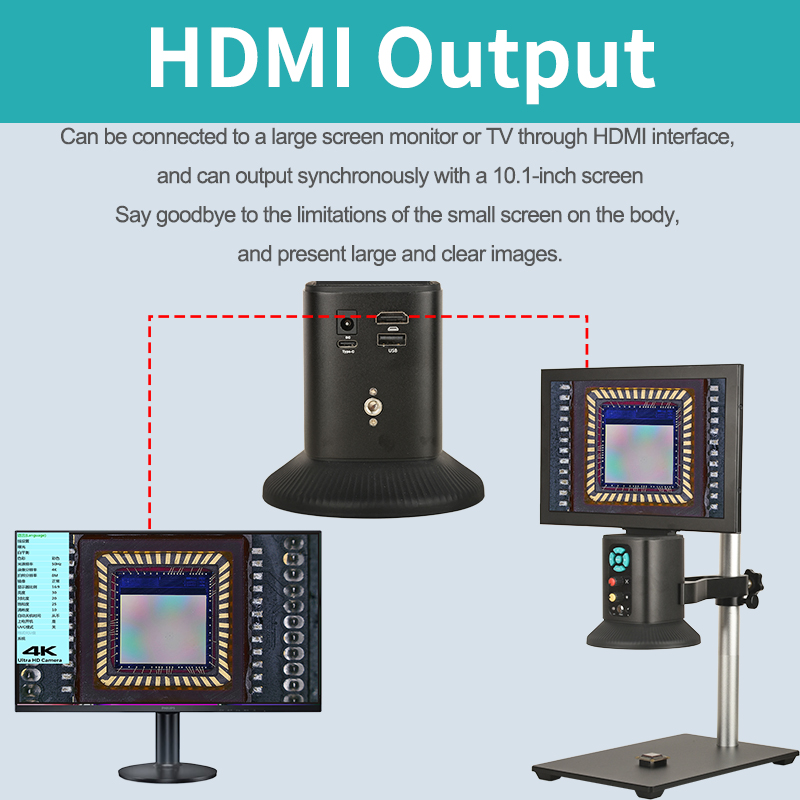

| HDMI Resolution Ratio | 3840X2160 30fps/1920X1080 60fps (HDMI interface can connect to monitor or TV) | ||||
| Photo | 3840X2160 JPG format | ||||
| Video | 4K 30 FPS (38400 X 2160) MP4 format | ||||
| Lens | HD Lens | ||||
| Focus Mode | Support manual focusing (adjustable through the focusing knob and remote control) | ||||

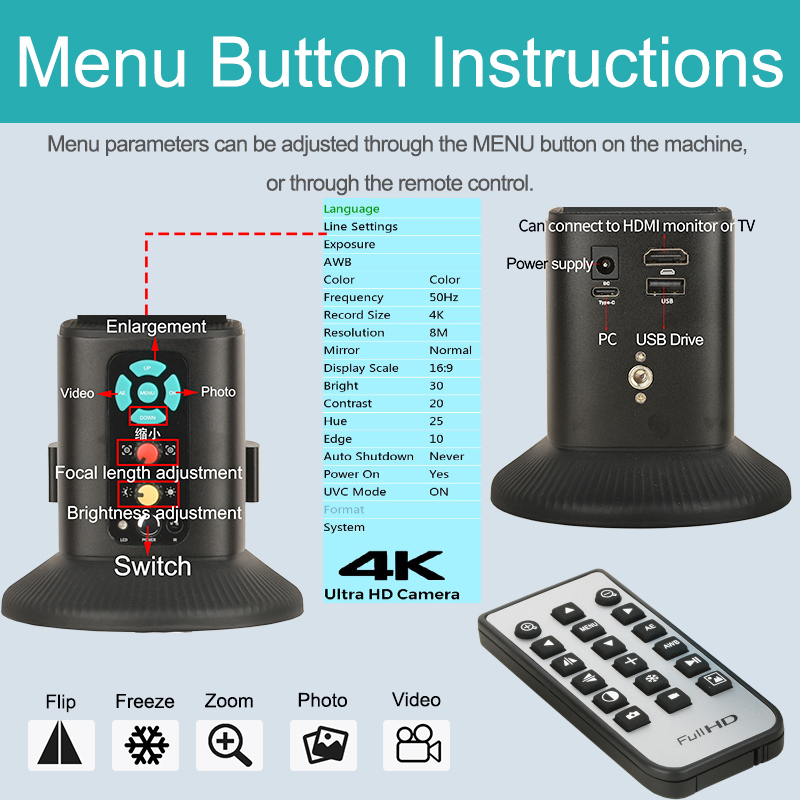

| Image Adjustment | Exposure,Saturation,contrast,Sharpness,Black and,white,Horizontal/Vertical flip,Freeze,Picture Playback | ||||
| Storage Mode | U disk | ||||
| Grid Line | Supports 16 straight lines with adjustable color,thickness and position | ||||
| Language | English/Chinese/Arabic/Italian/Russian/Japanese/Spanish/French | ||||
| Image comparison | Support comparison of 2 images | ||||
| Input Voltage | AC100V-240V 12V/2A | ||||
| Type-C PC Software | KOPPACE-VIEW（Support Photo,Video,Measurement） | ||||

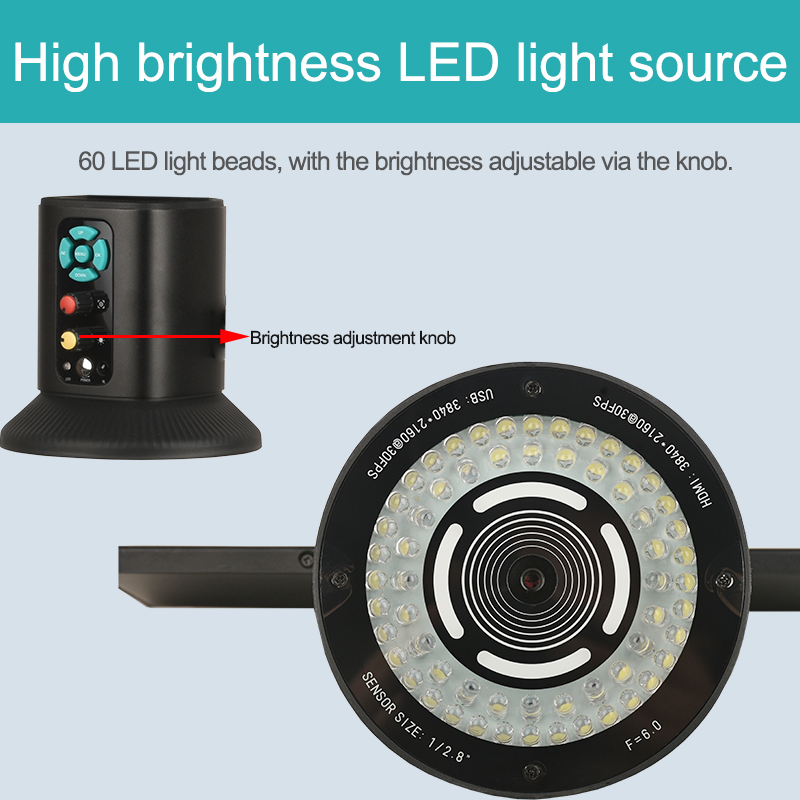

| LED Light Source | 60 LED light beads, with the brightness adjustable via the knob. | ||||

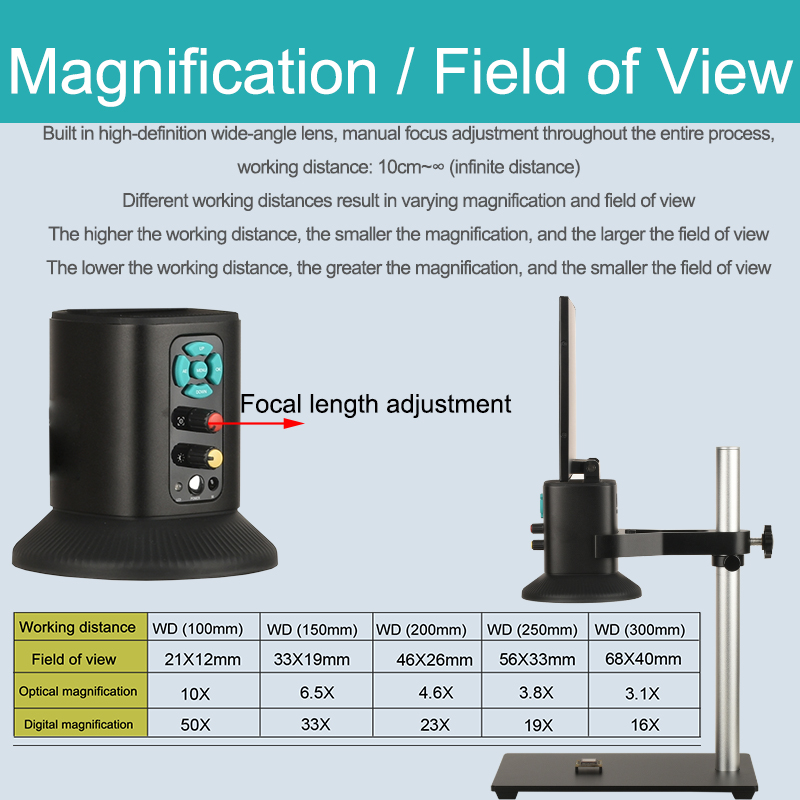

| Working Distance | WD (100mm) | WD (150mm) | WD (200mm) | WD (250mm) | WD (300mm) |
| Field of view | 21X12mm | 33X19mm | 46X26mm | 56X33mm | 68X40mm |
| Optical magnification | 10X | 6.5X | 4.6X | 3.8X | 3.1X |
| Digital magnification | 50X | 33X | 23X | 19X | 16X |

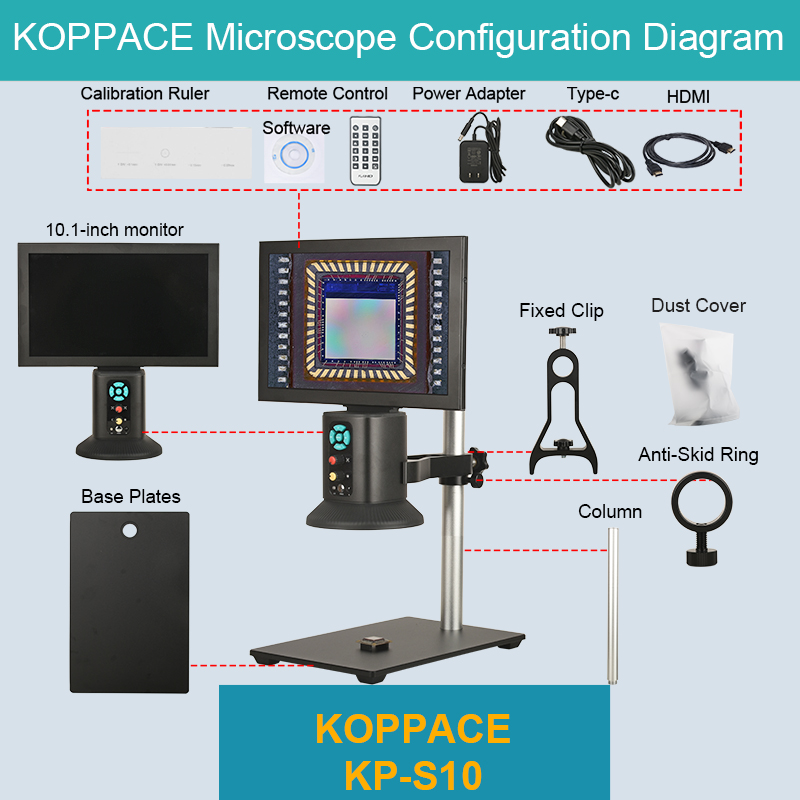

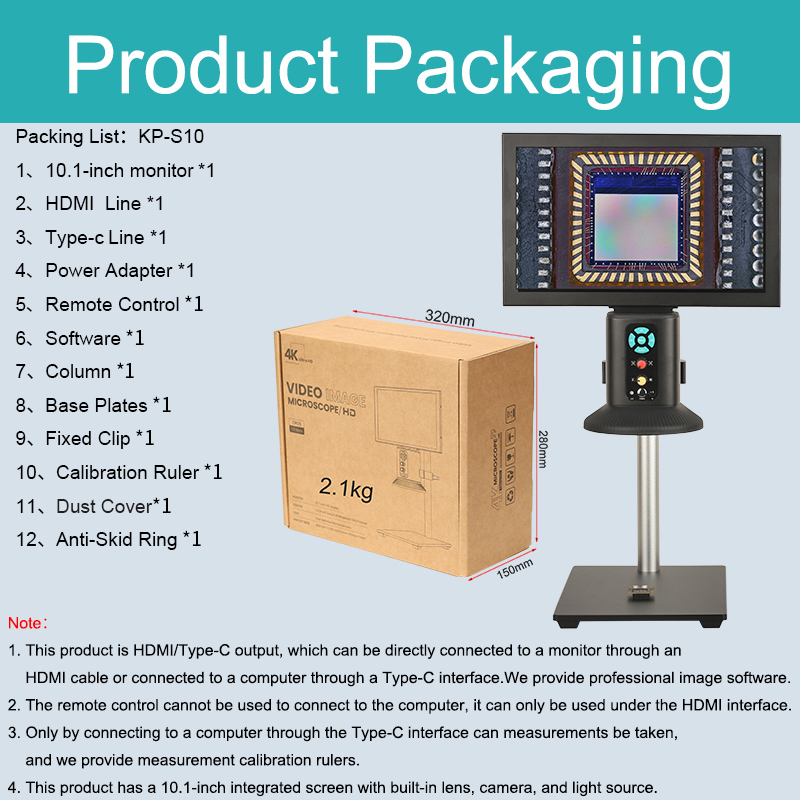

| Packing List | 1、10.1-inch monitor *1 2、HDMI Line *1 3、Type-c Line *1 4、Power Adapter *1 5、Remote Control *1 6、Software *1 7、Column *1 8、Base Plates *1 9、Fixed Clip *1 10、Calibration Ruler *1 11、Dust Cover*1 12、Anti-Skid Ring *1 |
||||

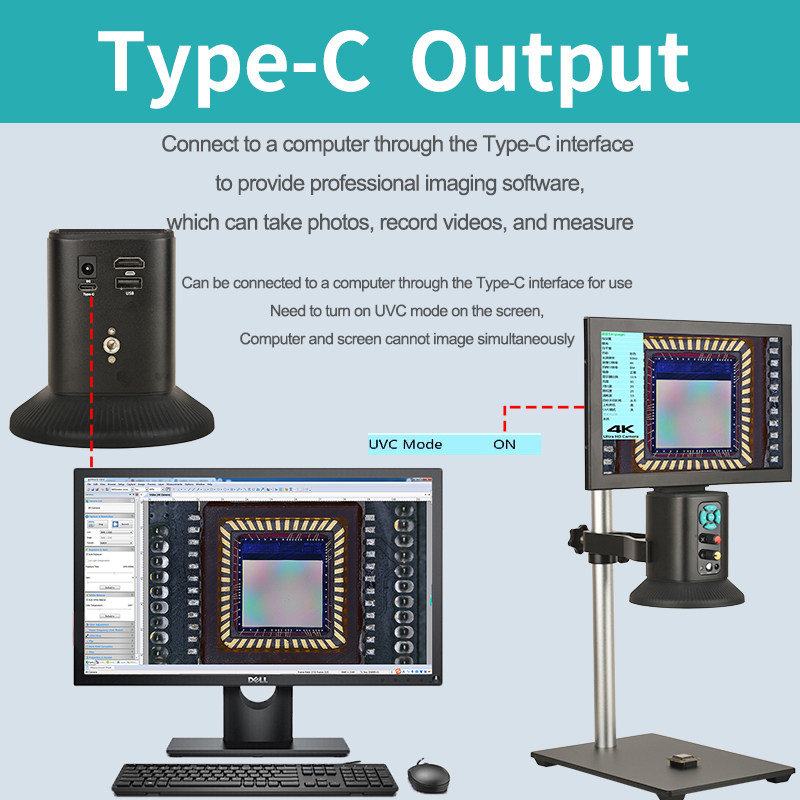

| Note | 1. This product is HDMI/Type-C output, which can be directly connected to a monitor through an HDMI cable or connected to a computer through a Type-C interface.We provide professional image software. 2. The remote control cannot be used to connect to the computer, it can only be used under the HDMI interface. 3. Only by connecting to a computer through the Type-C interface can measurements be taken,and we provide measurement calibration rulers. 4. This product has a 10.1-inch integrated screen with built-in lens, camera, and light source. |
||||
**************************************************************************************************************************************************************************************
About taxes:
1、The quotation for all our products does not include customs duties, and any taxes and fees generated by the purchase of the goods are borne by the buyer.
2、We can declare the value according to the buyer's request, please note in the order, otherwise we will declare according to the value of the order.
About shipping:
1、We guarantee delivery within 24 to 72 hours after payment confirmation other than holidays.
2、Courier companies that cooperate with us: China EMS, DHL, FedEx, will be selected according to the actual situation of the order.
3、Due to shipping reasons, the remote control does not contain a battery.
4、Make sure you have completed all the detail information correctly:
Contact person (Full name for Russians), address, post code and telephone.
We will prepare the package with the information provided in the order.
Buyers are responsible for undelivered packages if any of the information provided was wrong.
About feedback:
1、Once payment is received, we will provide five-star positive feedback.
2、If you are satisfied with our products, we sincerely hope that you can also leave us with five-star positive feedback.
3、If you have any questions, please give us a chance to solve the problem before giving us negative feedback.
4、We will do our best to provide you with satisfactory solutions. Your understanding and support is our greatest motivation!
About other：
1、When you sign the parcel, please check it carefully. You'd better take a video or photos when open it.
2、If your package is not delivered within 30 days, please contact us and we will help you check what happened to your package.
3、If there is any damage or shortage for your parcel, contact your Post Office or Express company immediately, Please send video or photos to our service staff at the same time.
4、We will provide suitable EU Plug, US Plug, UK Plug and Australian Plug according to the country/region where the client is located.
