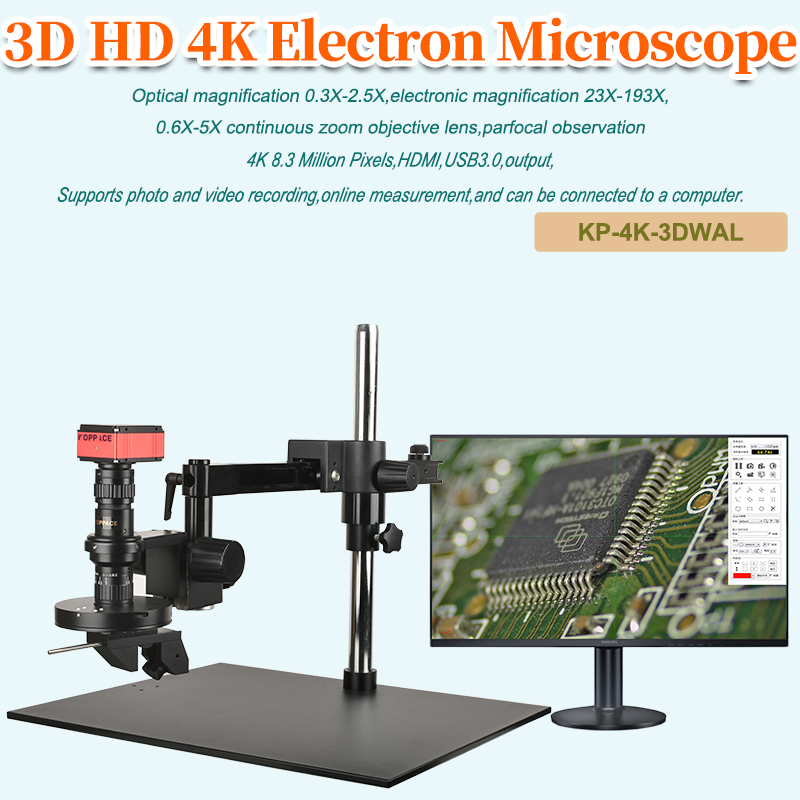

| Model |
KP-4K-3DWAL |
| Magnification |
23X-193X |
| Optical Magnification |
0.3-2.5X |
| Eyepiece |
0.5X |
| Objective Lens |
0.6X-5X |
| 3D Imaging Angle |
45° |

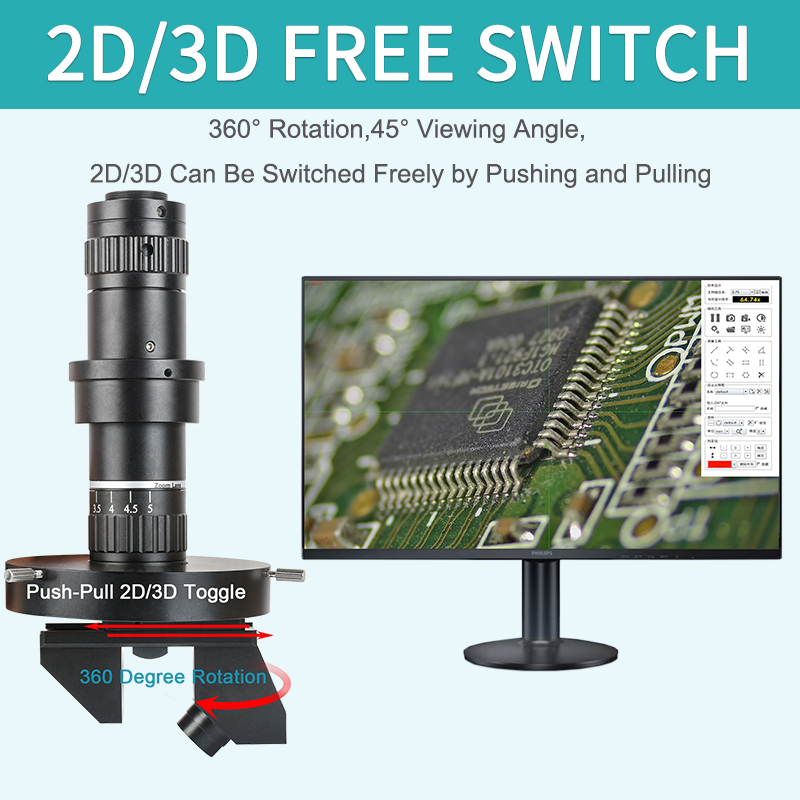

| 2D/3D Manual Switch |
The Working Distance Remains the Same,No Need to Refocus
After Adjusting the Center,the Center Remains the Same
360°Free Choice,Objective Lens Angle 45° |
| Working Distance |
86mm |
| Field of View |
3.54mm-29.53mm |

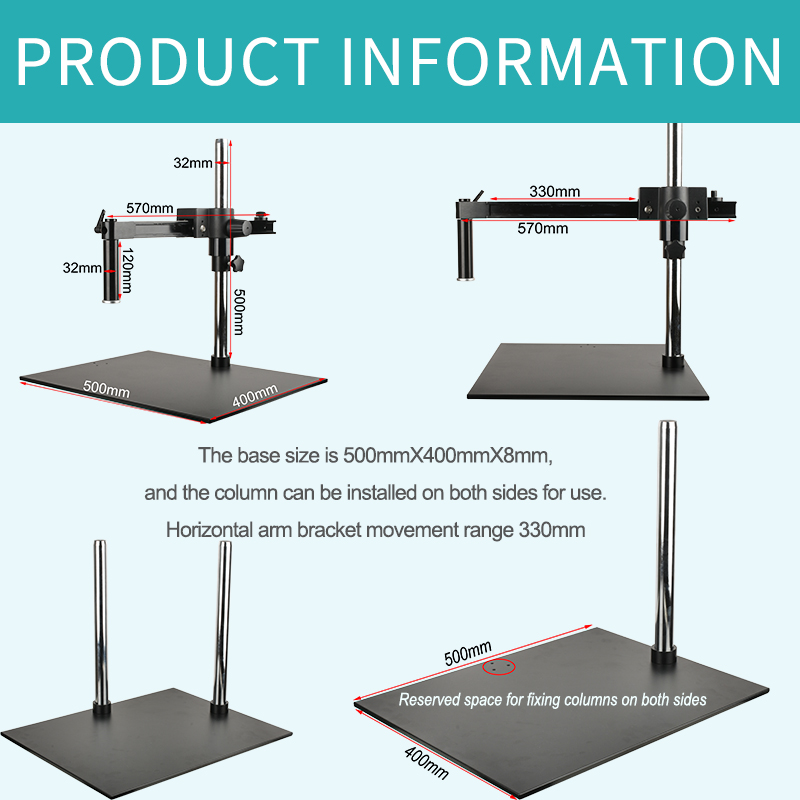

| Cross arm Bracket |
Horizontal arm movement range: 330mm, column height 500mm,
Base size 500mmX400mmX8mm, lens aperture 50mm |
| LED Light Source |
208 LED lamp Beads,Four-Zone Control,Independently Adjustable Brightness,illuminance 15000 Lux,Wavelength 455-457.5nm,Output Voltage 12V 8W |

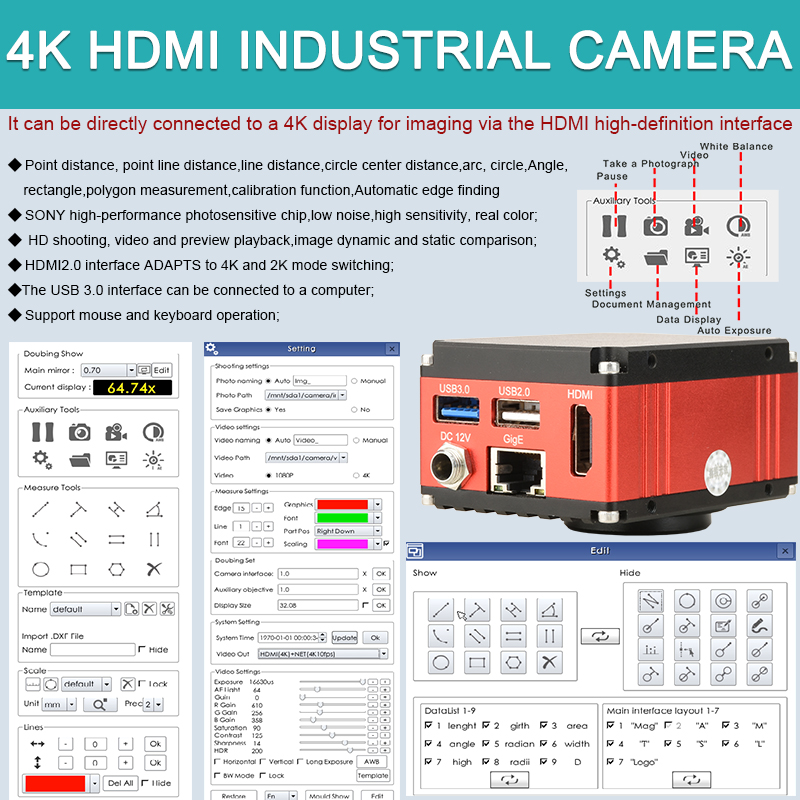

| Sensor |
8.3 Million Pixels 4K HD |
| Output Method |
HDMI、GigE、USB3.0 |
| Sensor Size |
1/1.8＂CMOS |
| Resolution |
3840X2160,(Photo can be Manually and Automatically Named file Name) |
| Video Resolution |
4K 30 Frames (3840X2160),1080P 60 Frames (1920X1080) |
| Like yuan size |
2.0μmX2.0μm |
| Output Frame Rate |
60FPS |
| Color Adjustment |
R、G、B Independently Adjustable |
| White Balance |
Auto/Manual |
| Image Adjustment |
Exposure Value,Saturation,Brightness,Contrast,Definition,Anti Reflective,Black and White,Flip,Crosshair,Support Horizontal/Vertical Flip,Picture Playback |
| Storage Mode |
U Disk Storage,Photo Taking,Video Recording and Measurement |

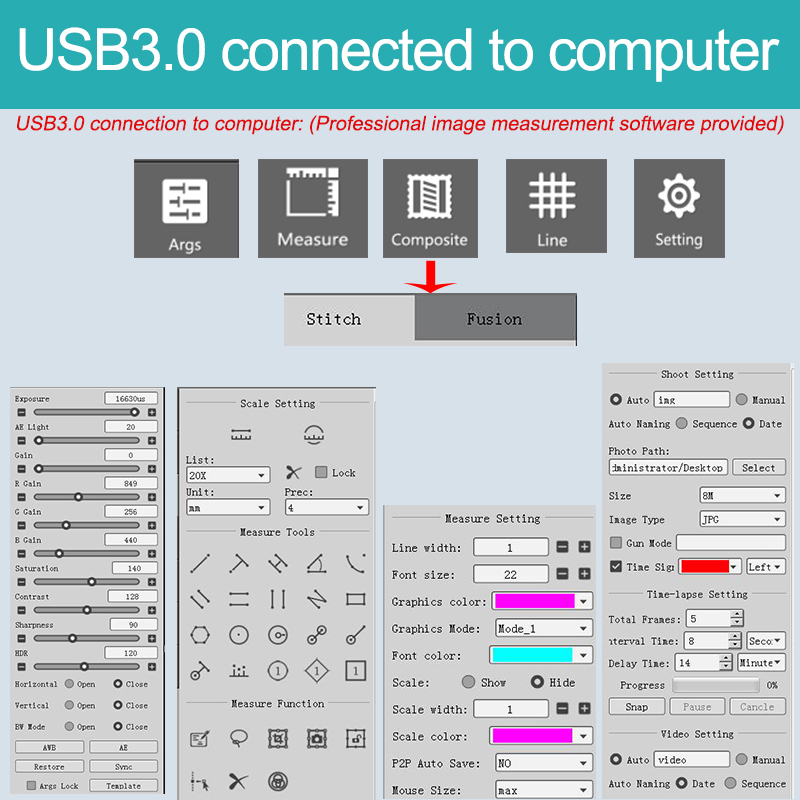

| GigE/USB3.0 |

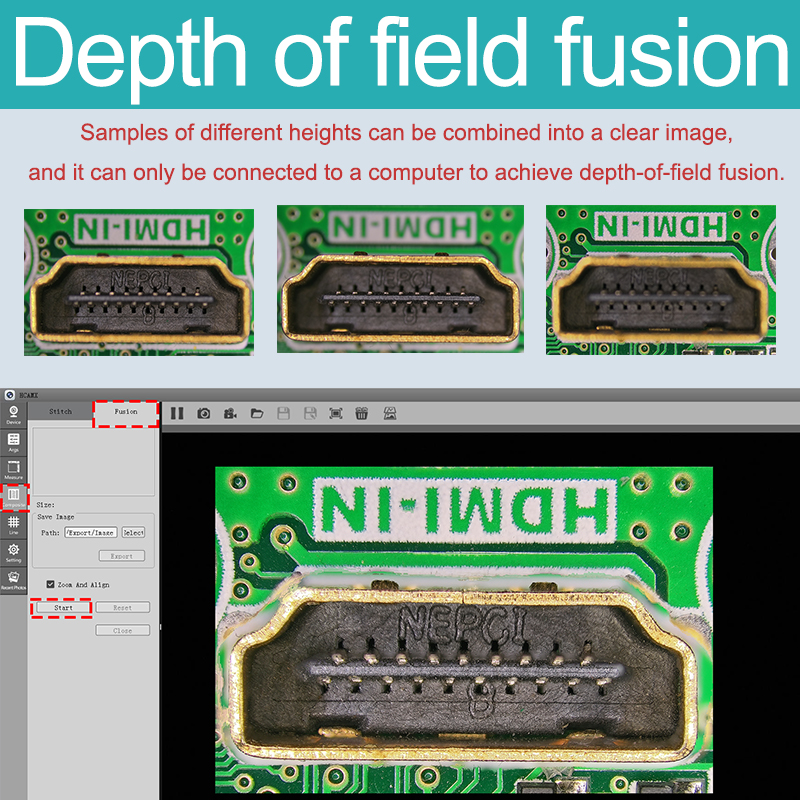

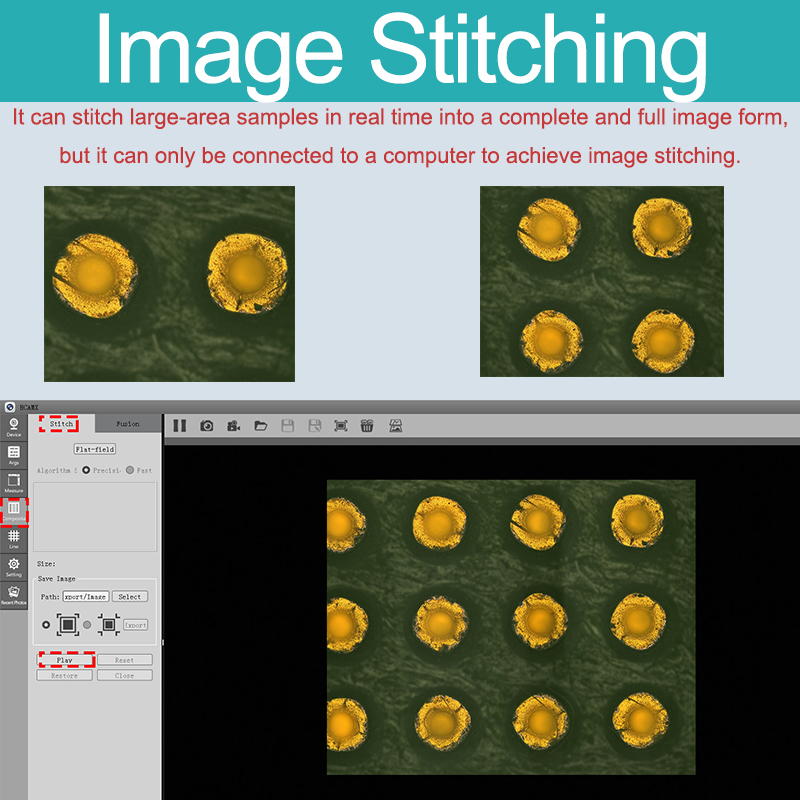

By connecting to a computer via a network port or a USB3.0 interface, image stitching and depth-of-field synthesis can be achieved. |

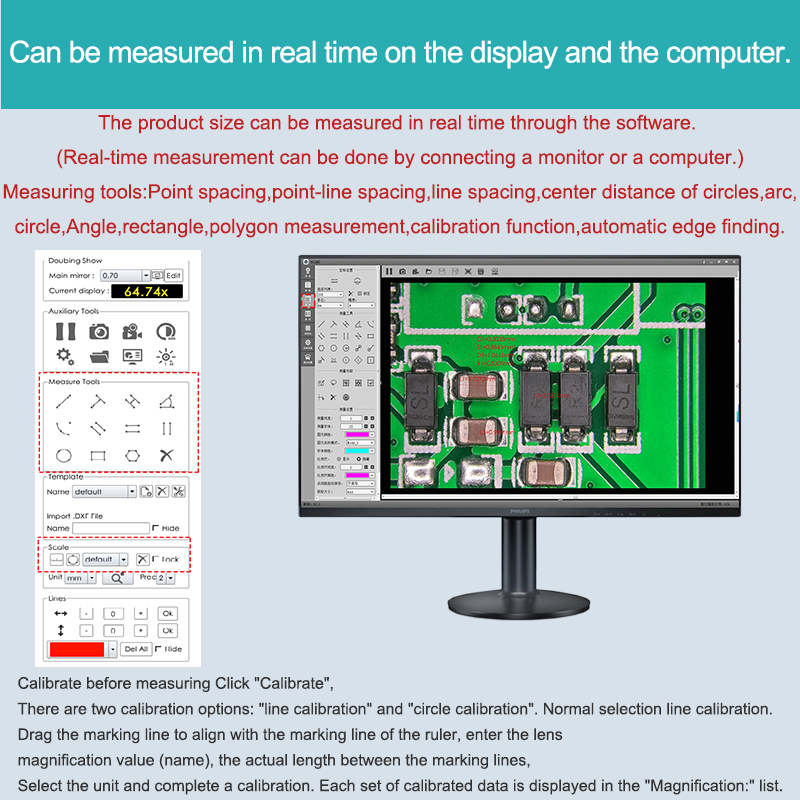

| Measuring Function |
Point Spacing,Point Line Spacing,Line Spacing,Center Distance arc,circle, Angle,Rectangle,Polygon Measurement,Calibration Function,Automatic Edge Searching |
| Storage Mode |
U Disk.Can Take Pictures.Video,and Measure |
| Crosshair Function |
100 Groups Horizontal and vertical lines |
| Lens Interface |
C Interface |
| Power Supply |
AC100V-240V DC-12V |

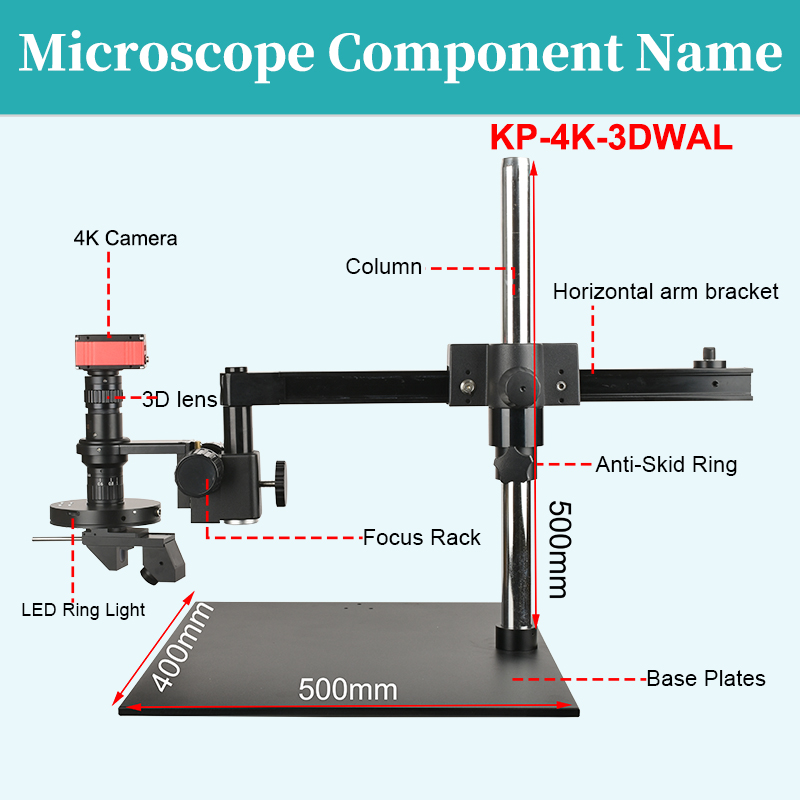

| Packing List |
1、3D Zoom Lens *1
2、LED Light Source *1
3、Cross arm Bracket *1
4、Focus Rack *1
5、Anti-Skid Ring *1
6、Pillar Stand and Base Plate *1
7、4K Camera *1
8、HDMI High Definition Line *1
9、The Camera Power Adapter *1
10、Calibrating Ruler *1 |
| Note: |

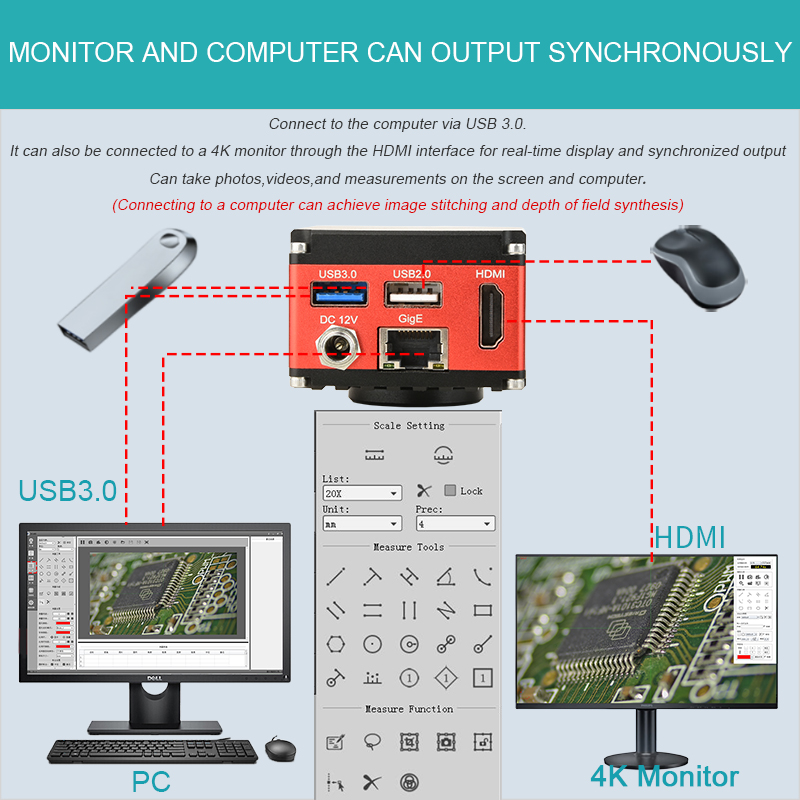

1. This product is HDMI/LAN LAN/USB3.0 output, Connect directly to the monitor through an HDMI cable, or connect to a computer through a network cable/USB 3.0 interface for use.
2. This product has two USB ports, one for connecting to a mouse and the other USB 3.0 for connecting to a computer. (You can also set up an interface to connect to a USB drive and an interface to connect to a mouse).
3. Photography,video recording,and measurement can be achieved on both the monitor and computer.
4. This product does not contain a monitor.
5、This Product Needs to be Measured in 2D Plane State,and Cannot be Measured in 3D State. |
**************************************************************************************************************************************************************************************
