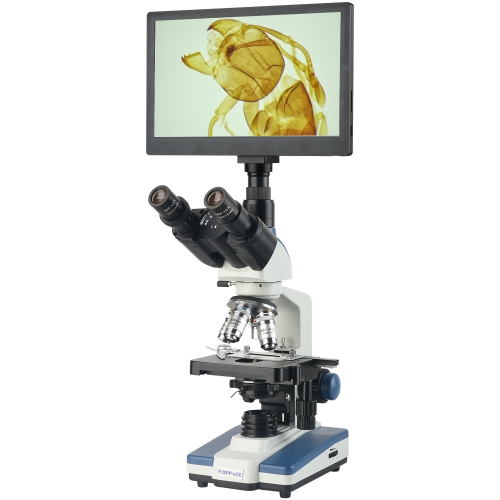

KOPPACE 40X-1600X Electron Compound Lab Microscope 2 Million Pixels 11.6-Inch All-in-One

Optical Magnification:40X-1600X
Electronic Amplification:166X-4150X
Pixel:2 Million Pixels 11.6-Inch All-In-One
    Please select the information you wantX
(500 available)
Shipping Cost:
Estimated Delivery Time:
Please select the country you want to ship from
  • Description
  • Reviews
Model KP-PH500
Optical Magnification 40X-1600X
Electronic Amplification 166X-4150X
Observation Tube Hinge Trinocular,30 Degrees Inclined,360 Degrees Rotate
Interpupillary Distance Adjustment Range 48mm-76mm
Eyepiece Wide-angle Eyepiece WF10X/20mm,WF16
Objective Lens Infinite Flat Field Achromatic Objective
PIan 4/0.1          PIan 10/0.25   PIan 40/0.65        PIan 100/1.25 oil
Converter Four Holes Conversion
Operating Platform Right Hand Low Hand Control of X and Y Directions Platform Area:160mmX142mm,Moving Range 76mmX52mm
Coarse Micro Focusing Mechanism Low Hand Coarse Micro Coaxial Focusing Mechanism,Coarse Adjustment Stroke 22mm,Fine Adjustment Accuracy 0.002mm
Condenser Abbe Condenser,N.A. = 1.25,Adjustable Center,With Variable Light bar and Filter Bracket
Light Source Reflector Lamp Room,Single High Power 3W LED
Power External Regulated Power Adapter, 100V-250V_AC50/60Hz DC5V/2A
Trinocular Interface 1X
Pixel 2 Million Pixels 11.6-Inch All-in-One
Output Method HDMI(You Can Connect a TV or Monitor With an HDMI Interface.)
Sensor 2M/Sony IMX335
Sensor Size 1/2.5"
Resolution Frame Rate 60@1920x1080
Pixel Size 2μmx2μm
Shoot Mode Images and Videos
Exposure Auto/Manual
White Balance Automatic/Manual
Image Adjustment Contrast,Saturation,Brightness,Sharpness,Noise Reduction,RGB
Color Color,Black and White
Mirroring Vertical Mirroring and Horizontal Mirroring
Measuring Function Cross Lines,Draw Dots,Two Dots Draw Circles,Draw Circles, Measure Circle Distance,Concentric Circles,Broken Lines,Angle Measurement,Rectangles,Curves,Parallel Lines,Polygons,Text Annotation
Packing List 1、Eyepiece  WF10X/18mm *2
2、Eyepiece  WF16X *2
3、Objective Lens 4X *1
4、Objective Lens 10X *1
5、Objective Lens 40X *1
6、Objective Lens 100X *1
7、Trinocular Microscope Body *1
8、1X Trinocular Interface *1
9、Power Adapter *1
10、5 Pieces Specimen *1
11、Dust Cover *1
12、11.6-inch HD Monitor Camera *1
13、Power Adapter *1
14、Mouse *1
15、Calibrating Ruler *1
Note: 1、100X (oil mirror),Because We Can Not Deliver liquid Products With Express Delivery,We Will Remove Immersion Oil.
2、This Product is an HDMI Output and can Only be Connected to a Monitor or TV With an HDMI Port.
3、This Product Has two USB Ports,One for Connecting the Mouse and the other for Connecting the USB Flash Drive.Measurements can be Performed Directly on the Display using the Mouse.
