| Model | KP-IE200MK |
| Optical Magnification | 50X,100X,200X,500X |
| Electronic Amplification | 192X-1926X |
| Optical System | Finite Vision Optical System |
| Eyepiece | High Eye Point Large Field of View Flat Field Eyepiece PL10X18mm |

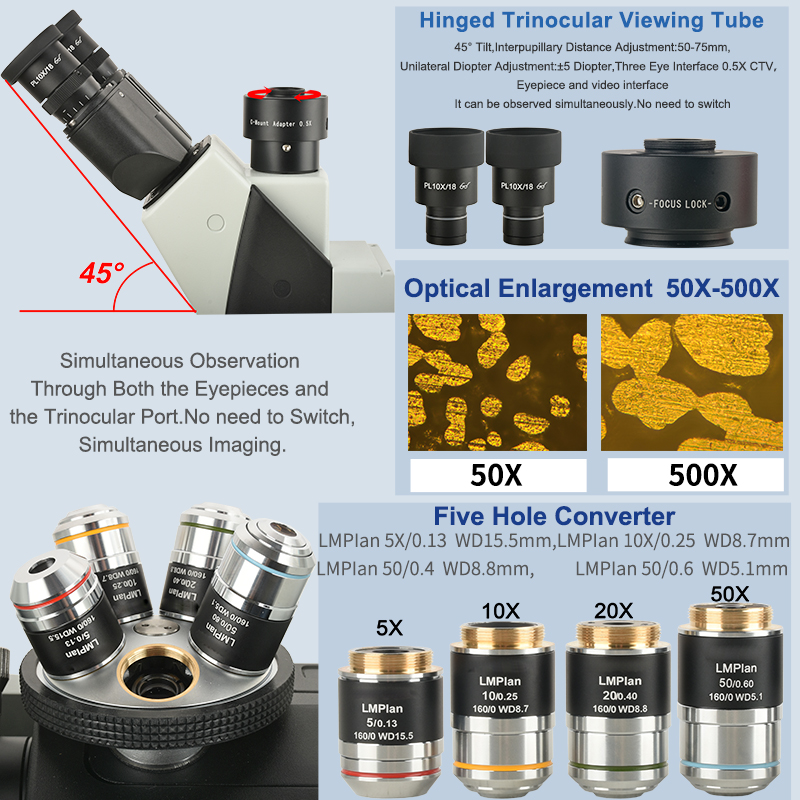

| Objective Lens | Long Working Distance Finite Flat Field Achromatic Metallographic Objective LMPlan 5X/0.13 WD 15.5mm LMPlan 10X/0.25 WD 8.7mm LMPlan 20X/0.4 WD 8.8mm LMPlan 50X/0.6 WD 5.1mm |
| Observation Tube | 45° Tilt,Hinged Trinocular Viewing Tube,Pupillary Distance Adjustment Range 50-75mm,Diopter Adjustment ±5 |
| Converter | Five Hole Converter |

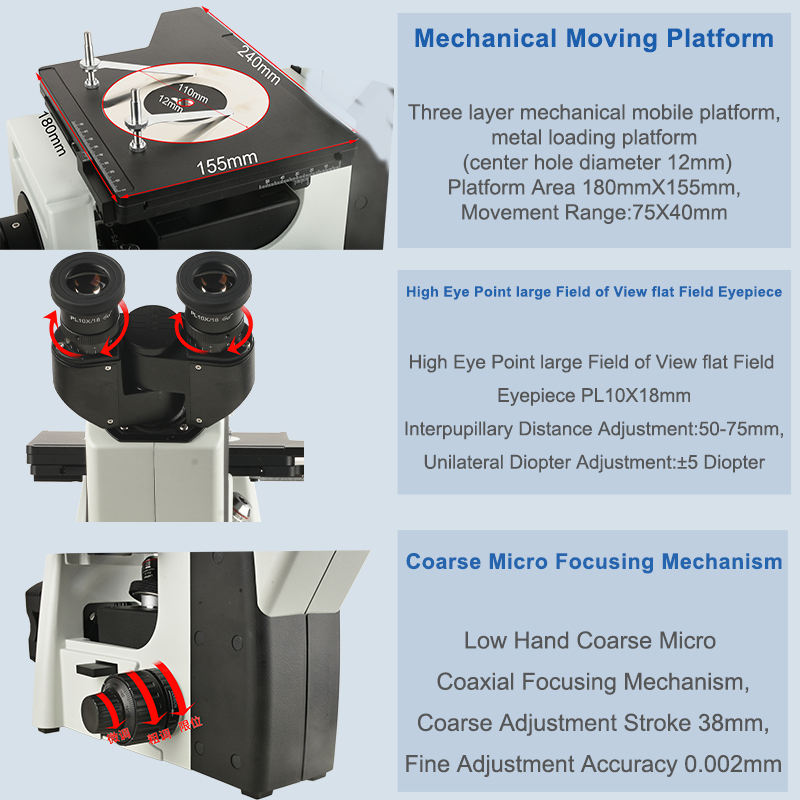

| Focusing System | Low Hand Coarse Micro Coaxial Focusing Mechanism,Coarse Adjustment Stroke 38mm,Fine Adjustment Accuracy 0.002mm |
| Operating Platform | Three layer mechanical mobile platform, metal loading platform (center hole diameter 12mm) Platform Area 180mmX155mm,Movement Range:75X40mm |
| Lighting System | Kola lighting system,with variable aperture light bar and center-adjustable field of view light bar Adaptive wide voltage 100V-240V,single 5W warm-color LED lamp, continuously adjustable light brightness; |
| Trinocular Interface | 0.5X C-Mount Interface,Adjustable Focus |
| Pixel | 8.3 Million Pixels |
| Output Method | HDMI、GigE、USB3.0 |
| Sensor | 8.3M/Sony 1/1.8＂CMOS |
| Photographic Resolution | 3840X2160,(Photo can be Manually and Automatically Named file Name) |
| Video Resolution | 4K 30 Frames (3840X2160),1080P 60 Frames (1920X1080) |
| Pixel Size | 2.0μmX2.0μm |
| Frame Rate | 60FPS |
| Color Adjustment | R/G/B |
| White Balance | Auto/Manual |

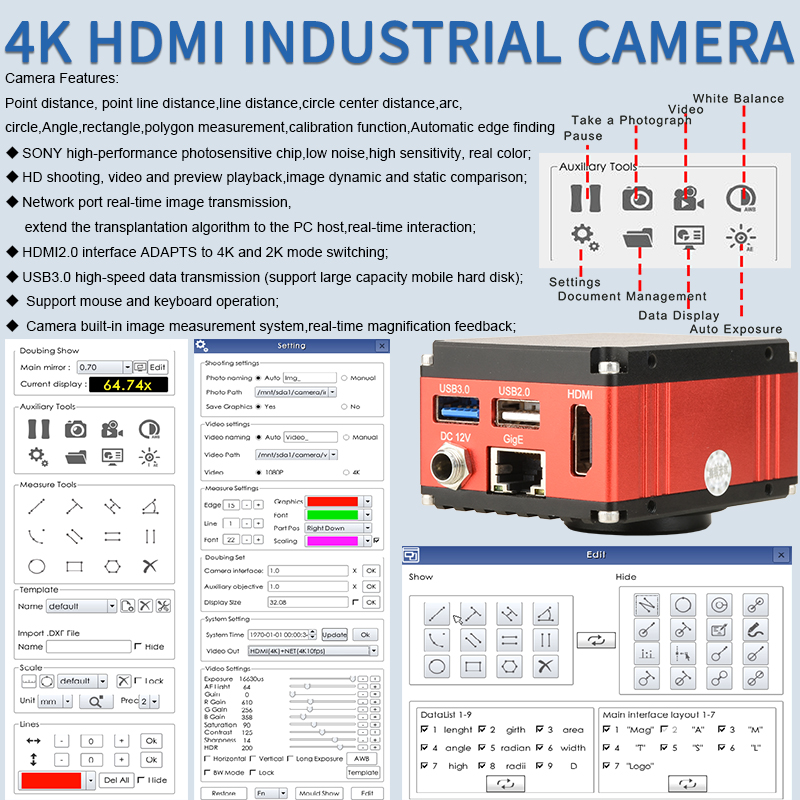

| Image Adjustment | Exposure Value,Saturation,Brightness,Contrast,Definition,Anti Reflective,Black and White,Flip,Crosshair,Support Horizontal/Vertical Flip,Picture Playback |
| Storage Mode | U Disk Storage,Photo Taking,Video Recording and Measurement |

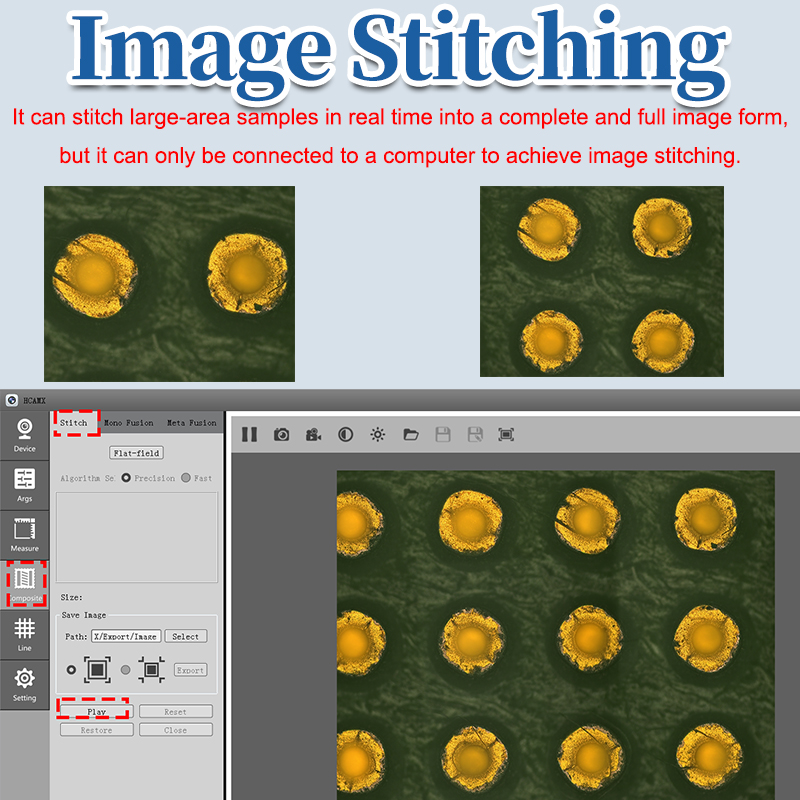

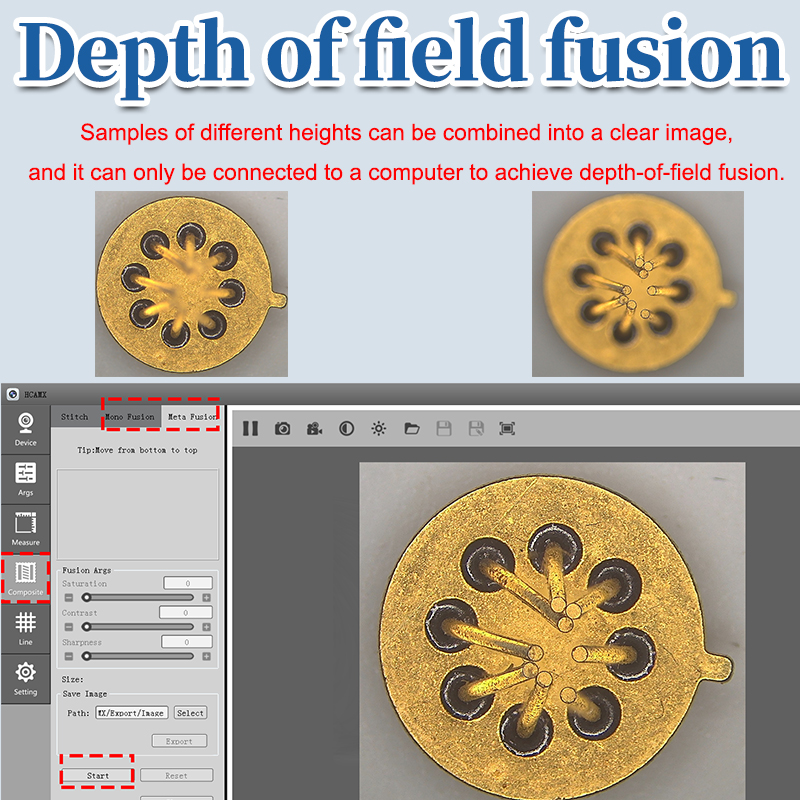

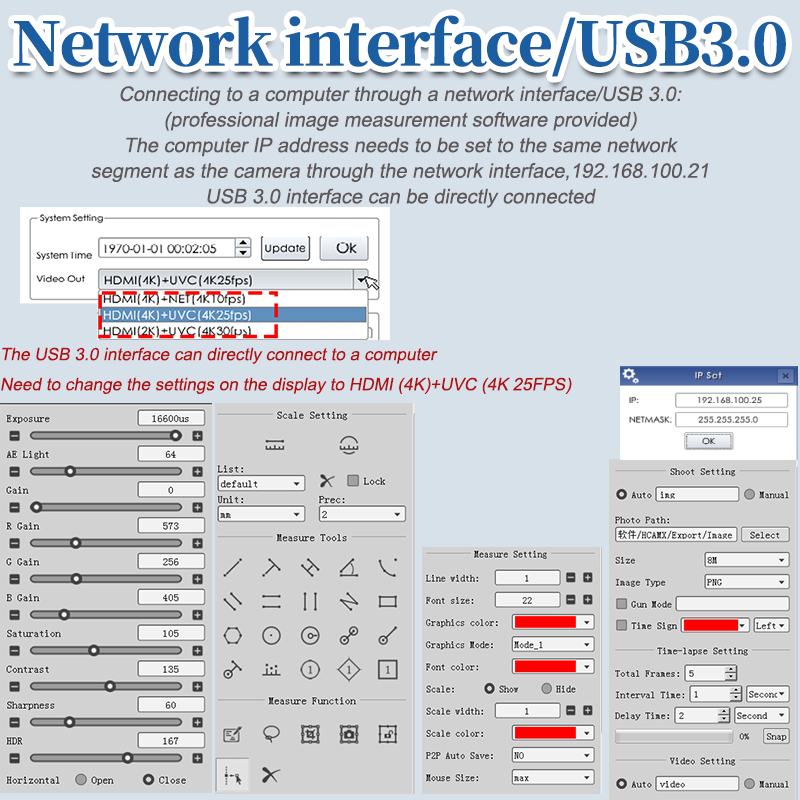

| GigE/USB3.0 | By connecting to a computer via a network port or a USB3.0 interface, image stitching and depth-of-field synthesis can be achieved. |
| Cross Hair | Support 100 Groups Cross Line,The Color Position is Adjustable |
| Power Supply | AC100V-240V DC-12V |
| Measuring Function | Point Spacing,Point Line Spacing,Line Spacing,Center Distance arc,circle, Angle,Rectangle,Polygon Measurement,Calibration Function,Automatic Edge Searching |

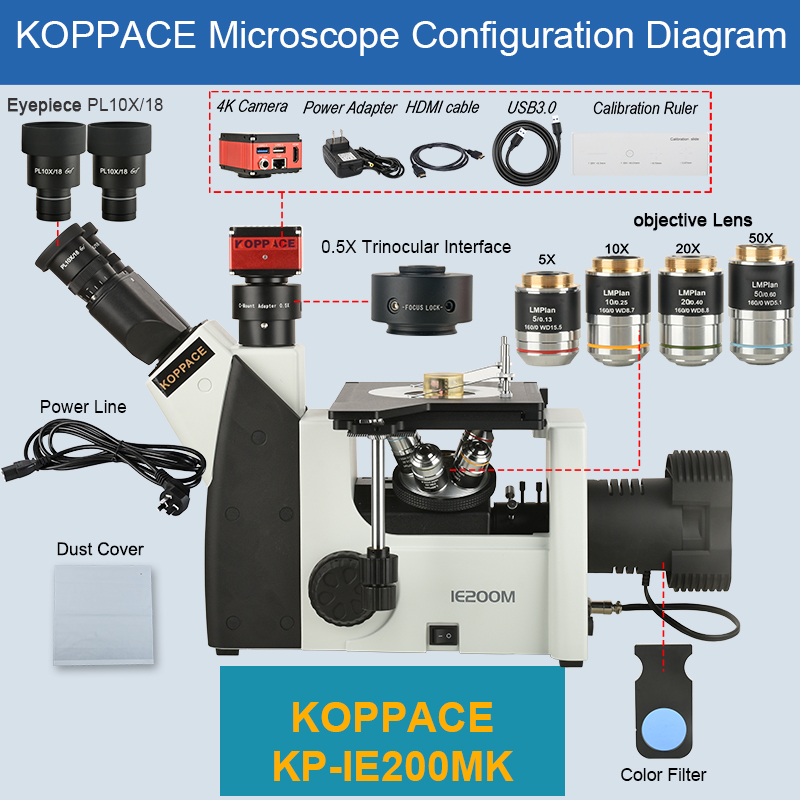

| Packing List | 1. Eyepiece PL10X/18mm One Pair 2. Objective Lens 5X * 1 3. Objective Lens 10X * 1 4. Objective Lens 20X * 1 5. Objective Lens 50X * 1 6. Microscope Body * 1 7. 0.5X Trinocular Interface * 1 8. Power Cord * 1 9、Dust Cover *1 10、Color Filter *1 11. 4K Camera *1 12. HDMI Line *1 13. Camera Power Supply *1 14. Calibrating Ruler *1 15. USB 3.0 Line *1 |

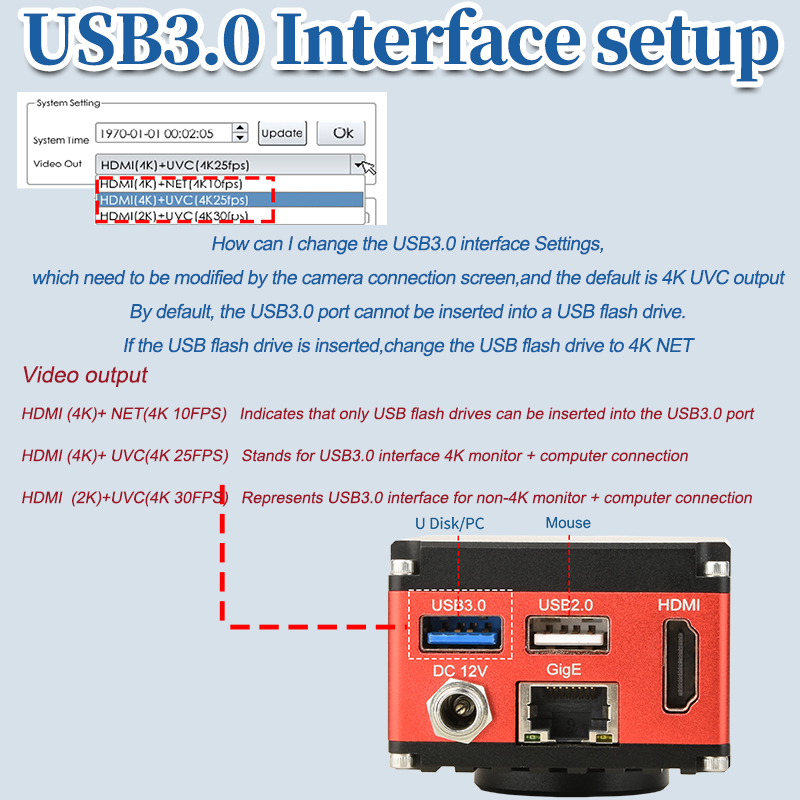

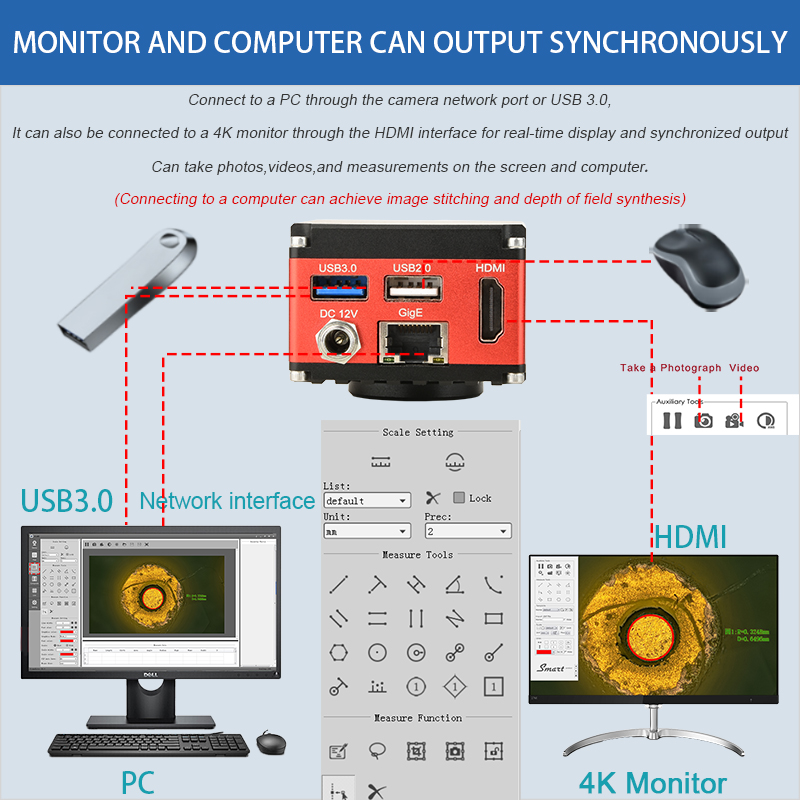

| Note: | 1. This product is HDMI/LAN LAN/USB3.0 output, Connect directly to the monitor through an HDMI cable, or connect to a computer through a network cable/USB 3.0 interface for use. 2. This product has two USB ports, one for connecting to a mouse and the other USB 3.0 for connecting to a computer. (You can also set up an interface to connect to a USB drive and an interface to connect to a mouse). 3. We can connect to a PC through a LAN or USB3.0 interface and provide professional imaging software. 4. Connecting to a computer can achieve image stitching and depth of field synthesis. 5. This Product Does not Contain a Display; 6. This product does not include polarizer and analyzer |
**************************************************************************************************************************************************************************************
