| Model | KP-IE200MU |
| Optical Magnification | 50X,100X,200X,500X |
| Electronic Amplification | 177X-1772X |
| Optical System | Finite Vision Optical System |
| Eyepiece | High Eye Point Large Field of View Flat Field Eyepiece PL10X18mm |

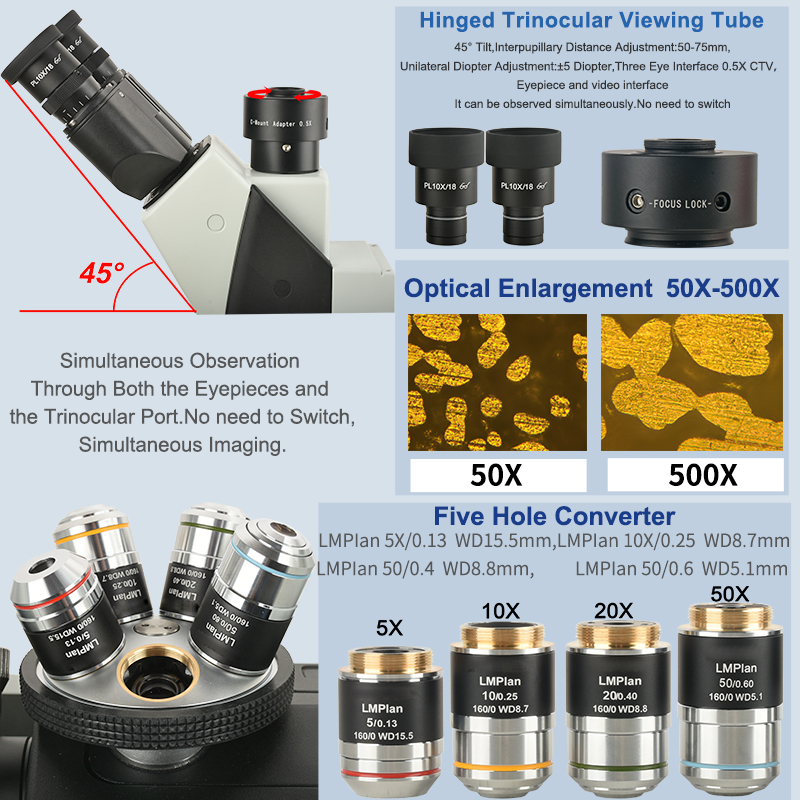

| Objective Lens | Long Working Distance Finite Flat Field Achromatic Metallographic Objective LMPlan 5X/0.13 WD 15.5mm LMPlan 10X/0.25 WD 8.7mm LMPlan 20X/0.4 WD 8.8mm LMPlan 50X/0.6 WD 5.1mm |
| Observation Tube | 45° Tilt,Hinged Trinocular Viewing Tube,Pupillary Distance Adjustment Range 50-75mm,Diopter Adjustment ±5 |
| Converter | Five Hole Converter |

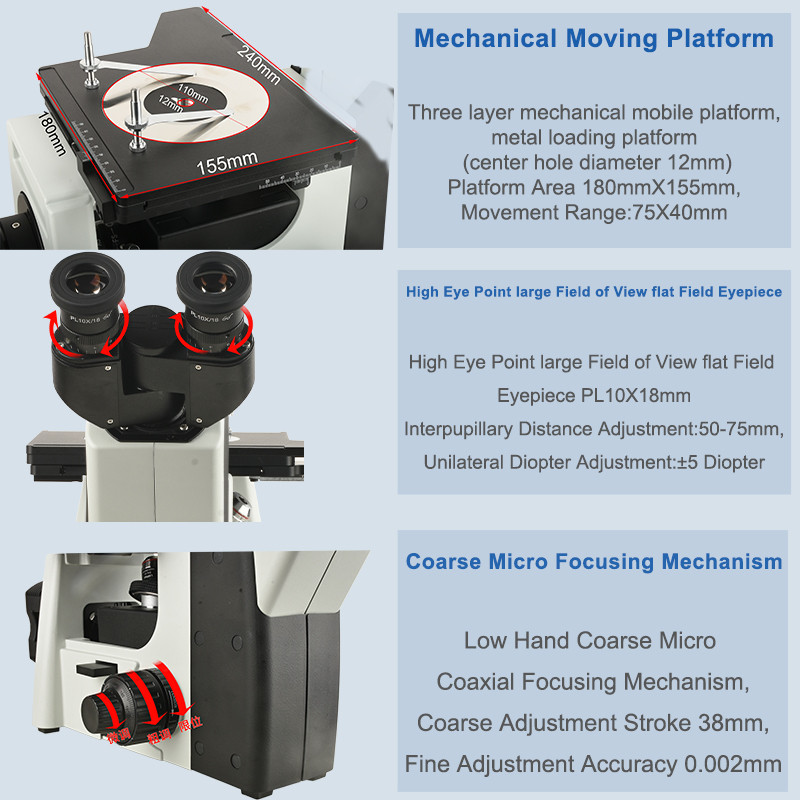

| Focusing System | Low Hand Coarse Micro Coaxial Focusing Mechanism,Coarse Adjustment Stroke 38mm,Fine Adjustment Accuracy 0.002mm |
| Operating Platform | Three layer mechanical mobile platform, metal loading platform (center hole diameter 12mm) Platform Area 180mmX155mm,Movement Range:75X40mm |

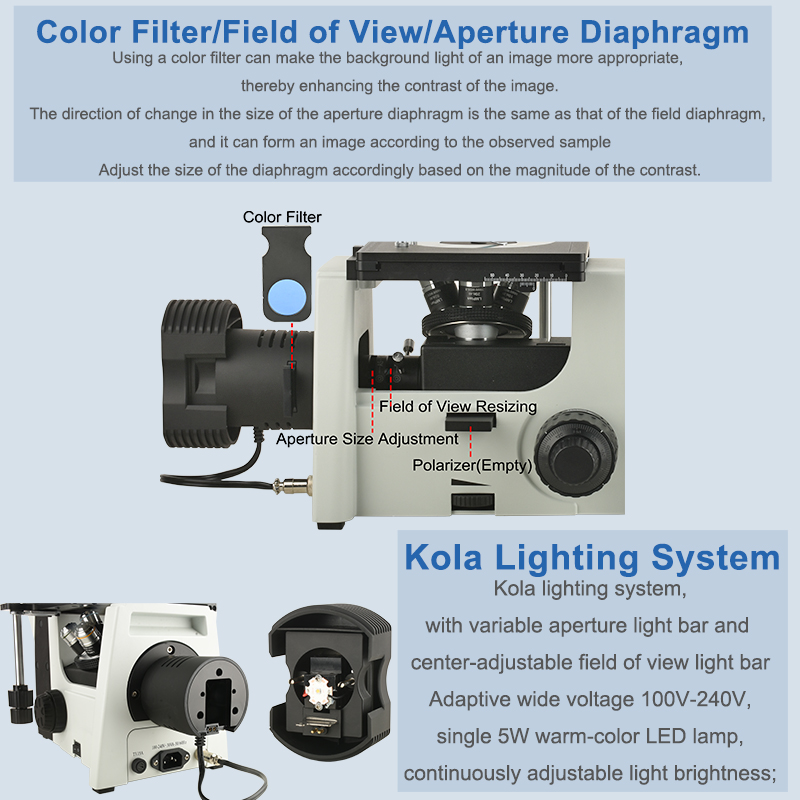

| Lighting System | Kola lighting system,with variable aperture light bar and center-adjustable field of view light bar Adaptive wide voltage 100V-240V,single 5W warm-color LED lamp, continuously adjustable light brightness; |
| Trinocular Interface | 0.5X C-Mount Interface,Adjustable Focus |
| Pixel | 25 Million Pixels |
| Output Method | USB3.0 |
| Sensor | 25M/SONY IMX511(C) |
| Sensor Size | 1/2.3 “ (5.519x5.519) |
| Pixel Size | 1.12μmx1.12μm |
| Resolution Frame Rate | 12@4928x4928，46@2464x2464，100@1648x1648 |
| Exposure Time | 0.013ms~15s |
| White Balance | ROI White Balance/ Manual Temp-Tint Adjustment |
| Color Rendering Technique | Ultra Fine Color Engine |
| Capture/Control SDK | Windows/Linux/macOS/Android Multiple Platform SDK(Native C/C++,C#/VB.NET,Python, Java,DirectShow,Twain,etc); |
| Operating System | Microsoft Windows /Vista / 7 /8 /10(32 & 64 bit) OS X (Mac OS X),Linux |
| File Save | Can Set File Name,Save Pictures With Time Format,Save Path Selection |
| Image Adjustment | Hue,Saturation,Brightness,Contrast,Sharpness,Color,Grayscale |
| Shooting Mode | Images and Videos |
| Camera Function | Advanced software for Windows: - SDK Available - Provides Stitching,EDF,Video Recording and Measurement Functions - Measurement of Length,Angle,Radian,area,etc. - Save Still Images in BMP,TIFF,JPG,PICT,PTL or other Formats - Edit and Process microscope images in a manner similar to PhotoShop |

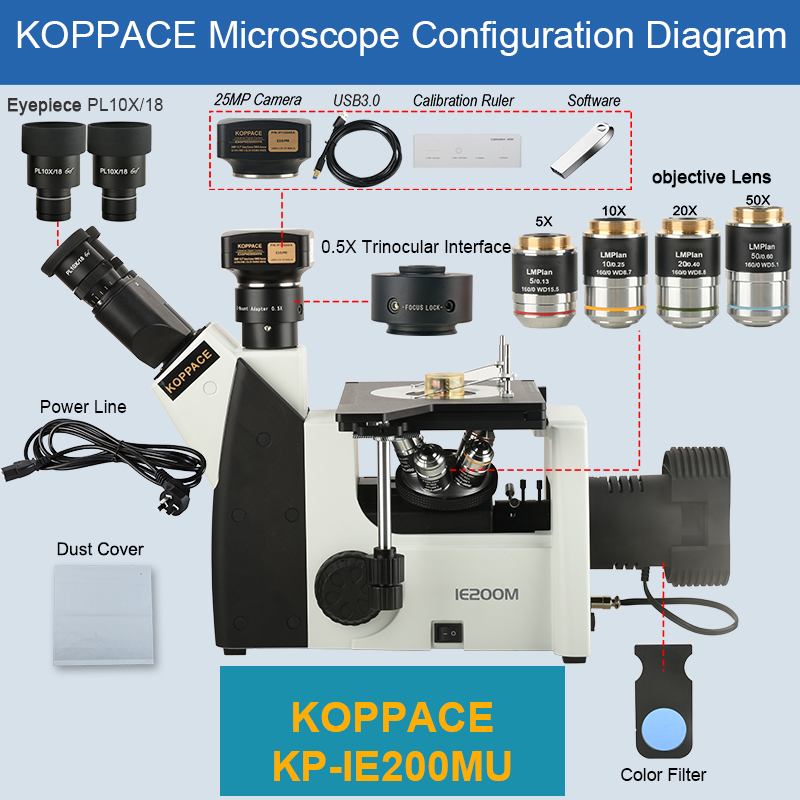

| Packing List | 1. Eyepiece PL10X/18mm One Pair 2. Objective Lens 5X * 1 3. Objective Lens 10X * 1 4. Objective Lens 20X * 1 5. Objective Lens 50X * 1 6. Microscope Body * 1 7. 0.5X Trinocular Interface * 1 8. Power Cord * 1 9、Dust Cover *1 10、Color Filter *1 11、25MP Camera *1 12、1.8m USB Cable *1 13、CD Software *1 14、Calibrating Ruler *1 |
| Note | 1、This Product Does Not Contain Computer; 2、This Product is Through the USB Interface Connected to the Computer for Use,We Provide Free Professional Image Software; 3、This product does not include polarizer and analyzer |
****************************************************************************************************************************************************************************************************************************************************
